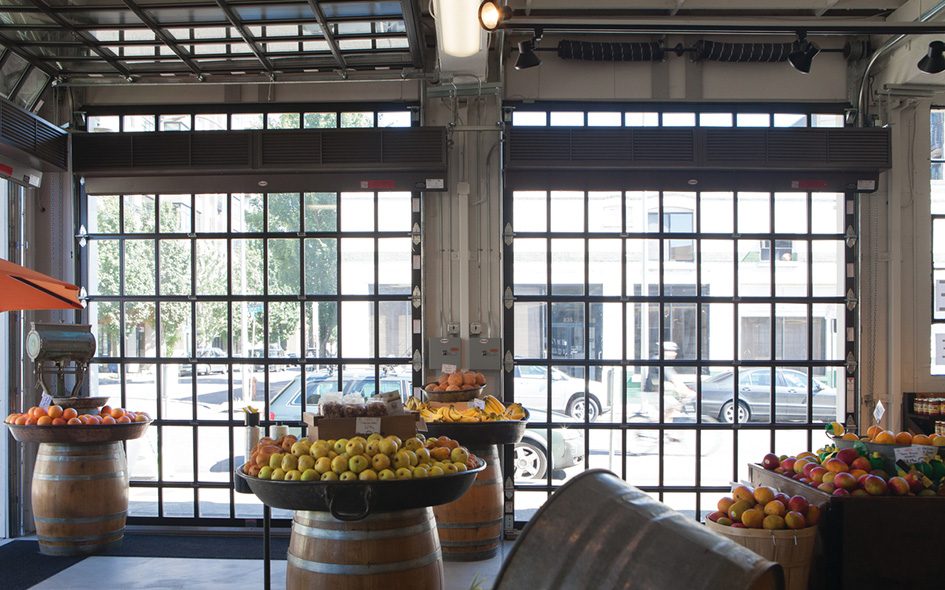

Aluminum Glass Door – 511
Model 511
Aluminum Glass Door model 511 is designed in sizes up to 16’2″ (4928 mm) wide and 16’1″ high (4902 mm). Featuring a narrow center stile width of 21/32″ (17 mm), these doors are sleek, attractive and permit maximum visibility. An array of glazing choices, top and bottom rail widths, finishes and special options customizes the 511 to satisfy nearly any project requirement.
Overview
| Product Specifications | |
|---|---|
| Standard Max Width | 16’2″ (4928 mm) |
| Standard Max Height | 16’1″ (4902 mm) |
| Panel thickness | 1 3/4″ (45 mm) |
| Material | 6063-T6 aluminum |
| Standard finish | 204R-1 clear anodized |
| Center stile width | 21/32″ (17 mm) |
| End stile width | 2 3/4″ (70 mm) |
| Top rail width | 2 3/8″ (60 mm)or 3 3/4″ (95 mm) |
| Top intermediate rail width | 3/4″ (19 mm) |
| Bottom intermediate rail width | 5/8″ (16 mm) |
| Bottom rail width | 2 3/8″ (60 mm) or 3 3/4″ (95 mm) or 4 1/2″ (114 mm) |
| Weatherseals | Bottom, flexible PVC |
| Standard springs | 10,000 cycle |
| Track | 2″ (51 mm) |
| Mounting | Angle |
| Operation | Manual pull rope |
| Hinges and fixtures | Galvanized steel |
| Lock | Galvanized, interior-mounted single unit |
Warranty
- 1-year limited
Options
Anodized Finishes
Clear (standard)
Light Bronze
Medium Bronze
Dark Bronze
Black
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
Double Strength (DSB)Standard
Obscure
Satin Etched
Gray Tint
Green Tint
Bronze Tint
Impact Frosted Polycarbonate
- Electric operator or chain hoist
- Bottom sensing edge
- 3″ track
- Bracket mounting (not available on full vertical door tracks)
- Higher-cycle springs in 25k, 50k, 75k, 100k cycle
- Exhaust ports
- Finish options:
- Bronze anodized
- Select from 197 standard powder coat colors or colored to match specification
- Window Glazing Options:
- 1⁄8″ (3 mm) DSB
- 1⁄8″ (3 mm) or 1⁄4″ (6 mm) acrylic
- 1⁄8″ (3 mm) or 1⁄4″ (6 mm) tempered
- 1⁄8″ (3 mm) or 1⁄4″ (6 mm) clear polycarbonate
- 1/4” (6 mm) and 3/8” (10 mm) multi-wall polycarbonate
- 1⁄4″ (6 mm) wire glass
- 1⁄2″ (12 mm) insulated glass
