High Speed Exterior Metal Door – 998
Model 998
RapidShield® Model 998 is a heavy-duty exterior door that features a solid aluminum curtain with opening speeds up to 80” per second. Engineered for high cycles and easy operation, RapidShield® Model 998 has been independently tested and is capable of withstanding wind load of up to 100 psf*. With a focus on safety, RapidShield® Model 998 also features patent-pending integrated curtain-monitoring device, a safety light curtain, and a monitored wireless reversing edge. This door is perfect for applications where security and privacy are a priority.
Overview
| Product Specifications | |
|---|---|
| Standard Max Width | 26′ |
| Standard Max Height | 21′ |
| Speed | Up to 80″ per second |
| Door Material | Dual-walled aluminum |
| Vision Option | Optional scratch-resistant polycarbonate panels |
| Perforated Option | Optional powder coat-matched perforated slat for 24% open area |

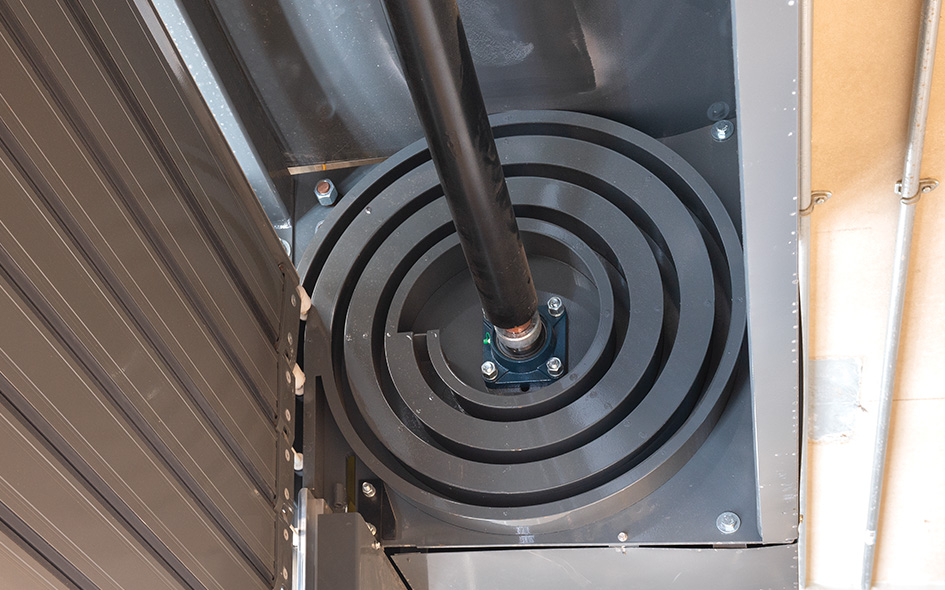

| Operation | Direct drive motor and gearbox system |
| Control Panel | Variable frequency drive NEMA 4X cULus listed |

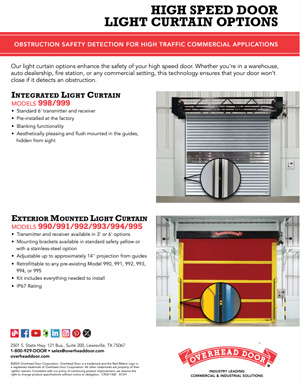

| Obstruction Detection | Integrated light curtain |
| Reversing Safety Edge | Wireless reversing edge |
| Electrical Availability | 230V AC 3PH; 460V AC 3PH; 575V AC 3PH†; (†requires stand-alone mounted transformer) |
| Wind Load* | Up to 100 psf |
* Pressure/wind resistance value is the ultimate pressure tested at door width of 15′.
**Up to 50 psf for RapidShield® Model 998 with optional vision panels.
Warranty
- 5-year Limited
Options
Standard Exterior Color
Silver
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
- Multiple actuation options – push button, motion detector, radio control, key switch, pull switch, loop detector, treadle switch
- Signaling devices – red/green LED warning light, horn/strobe combination, rotating warning light
- Slim guide available to reduce jamb side room

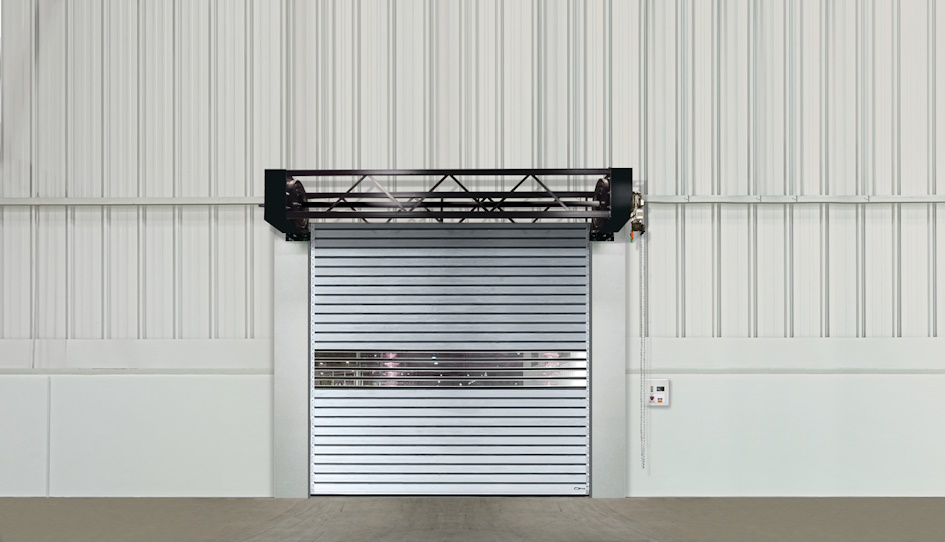

- RapidShield® Model 998 available with scratch-resistant vision slats
- Insulated slat available for RapidShield® Model 998
- Lintel cover
- Photo eyes
- Programmable LED lighting system – 3′ tall light bar with red, yellow, green lighting
- Impact rating in accordance with the Florida Building Commission; certified for Florida’s High Velocity Hurricane Zone
Brochures
Documents
High Speed Exterior Metal Door – RapidShield®
