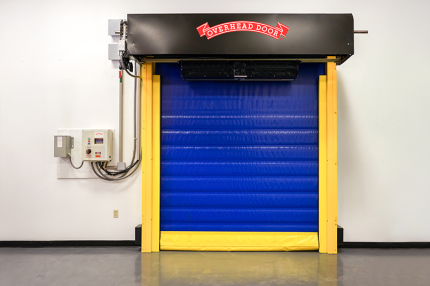

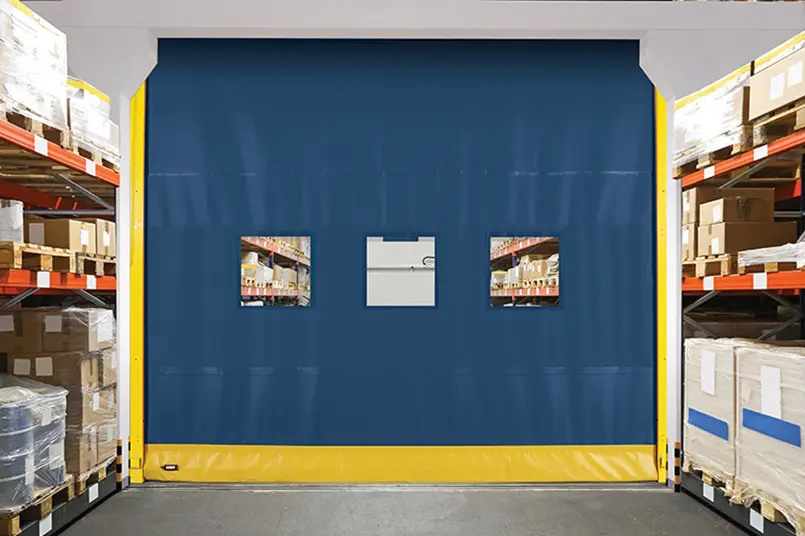

Flexible Bottom High Speed Door – 990
Model 990
Our flexible bottom high speed interior fabric door, RapidFlex® 990, is ideal for high-traffic manufacturing, pharmaceutical, warehouse and distribution facilities. Built for safety this door features a flexible bottom with wireless monitored reversing edge, built-in drop stop device and in-plane infrared sensors.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 12' |
| Standard Max Height | 12' |
| Speed | Up to 70" per second |
| Curtain Lock | Patent-pending curtain-lock design allows for quick and easy repair in the field |
| Break-Away Self-Reset | Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event |
| Wind Load* | Up to 3.0 psf |
| Door Panel | 2 thin layers of PVC coated polyester; 1 layer of polyester weave |
| Operation | Direct drive motor and gearbox system with a door stop device |
| Control Panel |
|
| Obstruction Detection | Infrared sensors mounted in-plane to the door curtain at 6" and 50"-54" from floor |
| Reversing Safety Edge | Wireless reversing edge; Flexible bottom bar with detachable bottom seal |
| Electrical Availability** | 120V AC 1PH; 208V AC 1PH†; 220V AC 1PH; 208V AC 3PH†; 230V AC 3PH; 460V AC 3PH; 575V AC 3PH† |
* Pressure/wind resistance value is the ultimate pressure tested at door width of 12'.
**Single phase available up to 10’ doors.
†Requires stand-alone mounted transformer
Warranty
- 5-year limited on drive motor and gearbox; 1-year limited on all other available components
Options
Red
Blue (Textured)
Gray
White
Bottom Bar & Guide
Safety Yellow
RAL Powder Coat
Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor. The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.
Actuation options
Push button, key switch, pull switch, motion detector, radio control, loop detector, treadle switch ; Wireless options: pull switches, 1 or 3 button push button, palm button
Signal device options
Red/green LED warning light, horn/strobe combination, rotating warning light
Programmable LED lighting system
Tall light bar with red, yellow, green lighting
20" high vision panels
Spaced evenly across width of door
Brochures
Documents

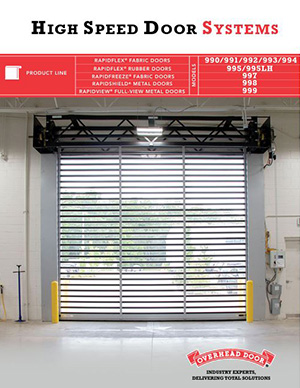

High Speed Fabric Door - RapidFlex®
Related products

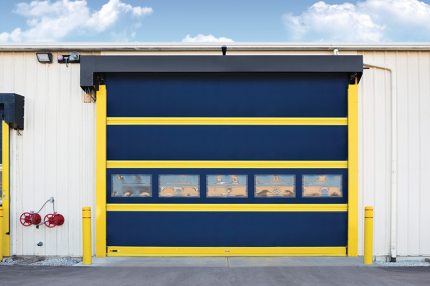

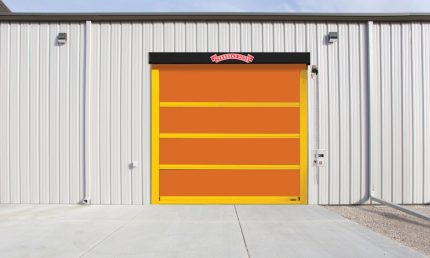

High Speed Exterior Fabric Door – 993
Model 993
RapidFlex® Model 993 is a strutted, exterior heavy-duty high speed fabric door with independently tested wind load of up to 19.5 psf*. Its industry-leading standard safety features include reversing edge, two sets of infrared obstruction detection sensors and door stop device.
Perfect for parking garages, manufacturing, warehouse and distribution facilities.

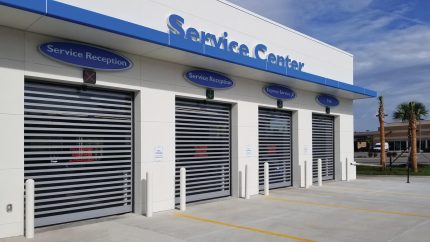

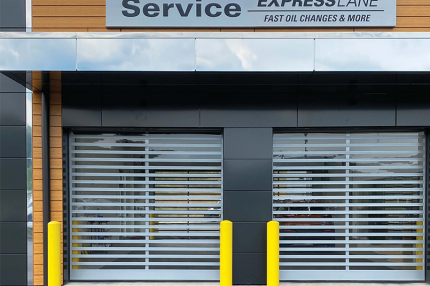

High Speed Exterior Full-View Metal Door – 999
Model 999
Sleek and sophisticated RapidView® Model 999 is a full view door featuring scratch-resistant polycarbonate panels with opening speeds up to 80” per second. Engineered for high cycles and easy operation, RapidView® Model 999 has been independently tested and is capable of wind load up to 50 psf*. The simple install and low maintenance add to the attractiveness of the door and features completely hinged guides, fully assembled curtains and pre-wired motor connection. RapidView® Model 999 is perfect for high traffic applications requiring aesthetic appeal and visibility.

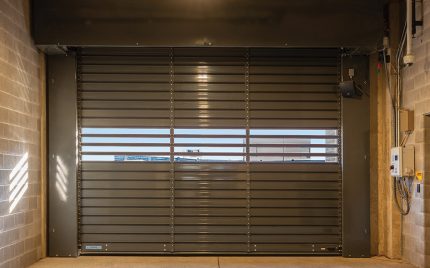

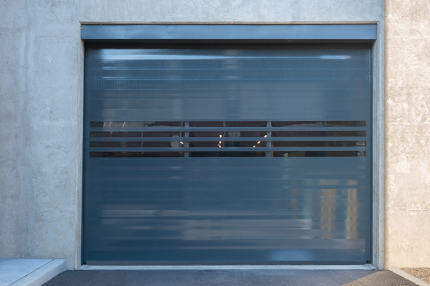

High Speed Exterior Metal Door – 998
Model 998
RapidShield® Model 998 is a heavy-duty exterior door that features a solid aluminum curtain with opening speeds up to 80” per second. Engineered for high cycles and easy operation, RapidShield® Model 998 has been independently tested and is capable of withstanding wind load of up to 100 psf*. With a focus on safety, RapidShield® Model 998 also features patent-pending integrated curtain-monitoring device, a safety light curtain, and a monitored wireless reversing edge. This door is perfect for applications where security and privacy are a priority.

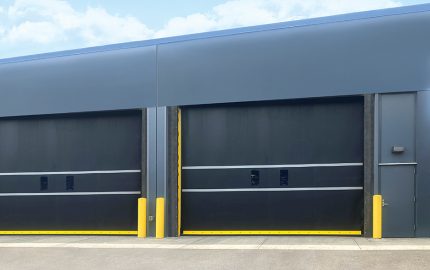

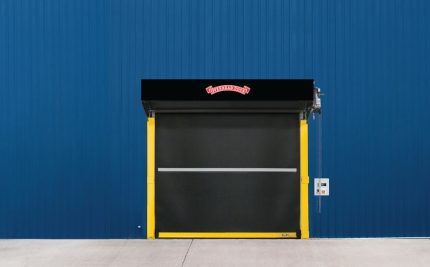

High Speed Exterior Rubber Door – 995
Model 995
RapidFlex® Model 995 is a heavy-duty exterior high speed rubber door that features a multi-reinforced NBR rubber curtain and high strength guide construction to withstand harsh exterior conditions. It features an independently tested wind load of up to 27.0 psf*. The RapidFlex® Model 995 includes industry-leading standard safety features such as reversing edge, two sets of infrared obstruction detection sensors and door stop device. Perfect for parking garages, food/beverage, mining, auto/transit and manufacturing facilities.

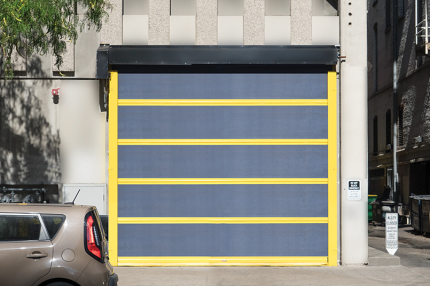

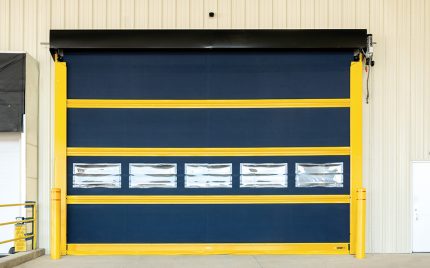

High Speed Heavy Duty Exterior Fabric Door – 994
Model 994
RapidFlex® Model 994 is a strutted, heavy-duty exterior high speed fabric door that is perfect for large openings and is best suited for manufacturing, mining, auto/transit, and parking garage applications. It features an independently tested wind load of up to 22.0 psf. The RapidFlex® Model 994 includes industry-leading standard safety features such as reversing edge, two sets of infrared obstruction detection sensors and door stop device.
Our RapidFlex® Model 994 high speed heavy-duty exterior door is a perfect door solution for parking garages, mining, auto/transit and manufacturing facilities.
High Speed Insulated Fabric Doors – 997
Model 997

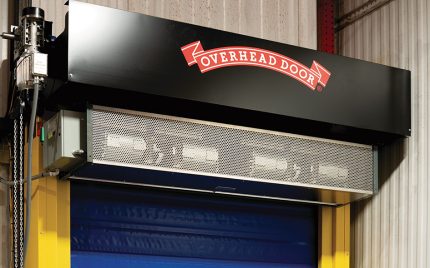

RapidFreeze® Model 997 is an interior fabric high speed freezer and cooler door that features an insulated curtain to prevent heat loss and condensation in settings where temperatures vary greatly on either side of the door opening. With a patented quad-sealed guide design and an optional heated air curtain, this application driven solution is flexible enough to meet the thermal performance needs of demanding temperature and humidity combinations. RapidFreeze® 997 continues the Overhead Door™ brand tradition of delivering superior performance, speed and longevity, while providing cutting edge engineering innovation. This freezer and cooler door has been designed especially for cold storage along with food and beverage facilities.

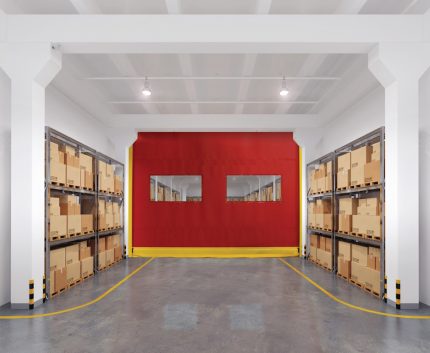

High Speed Interior Fabric Door – 991
Model 991

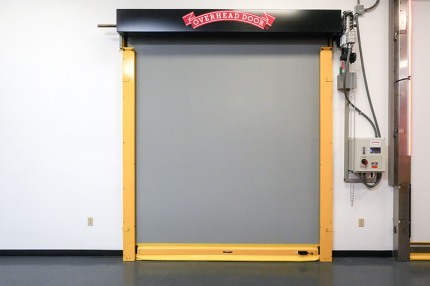

Our high speed interior fabric door, RapidFlex® Model 991, is ideal for separating controlled environment spaces such as food and beverage facilities, high traffic zones, storage rooms and manufacturing areas to prevent cross contamination. This door features dual recessed photo eyes and a patent-pending curtain lock which allows the door to withstand pressure and enables it to be repaired quickly in the field.
Perfect for manufacturing, distribution, food / beverage, cold storage and pharmaceutical facilities.

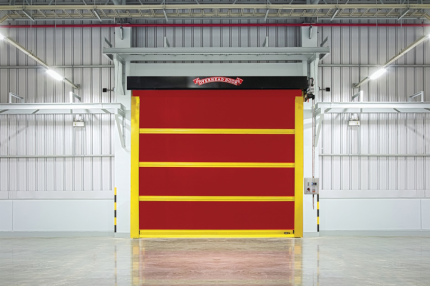

High Speed Interior Fabric Door – 992
