High Speed Exterior Fabric Door – 993
Model 993

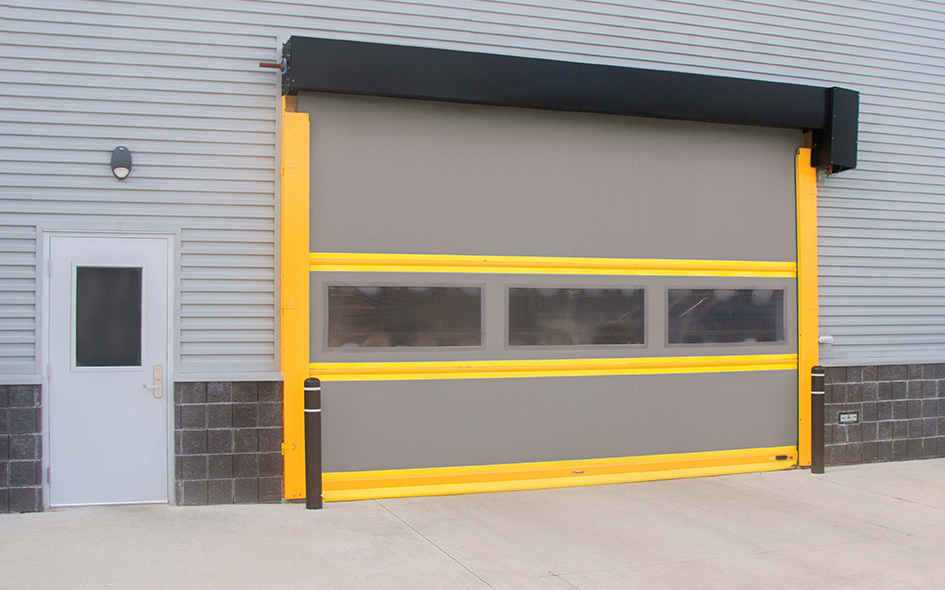

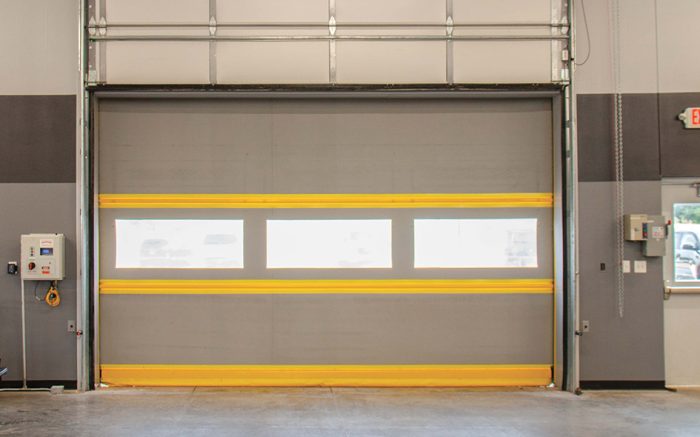

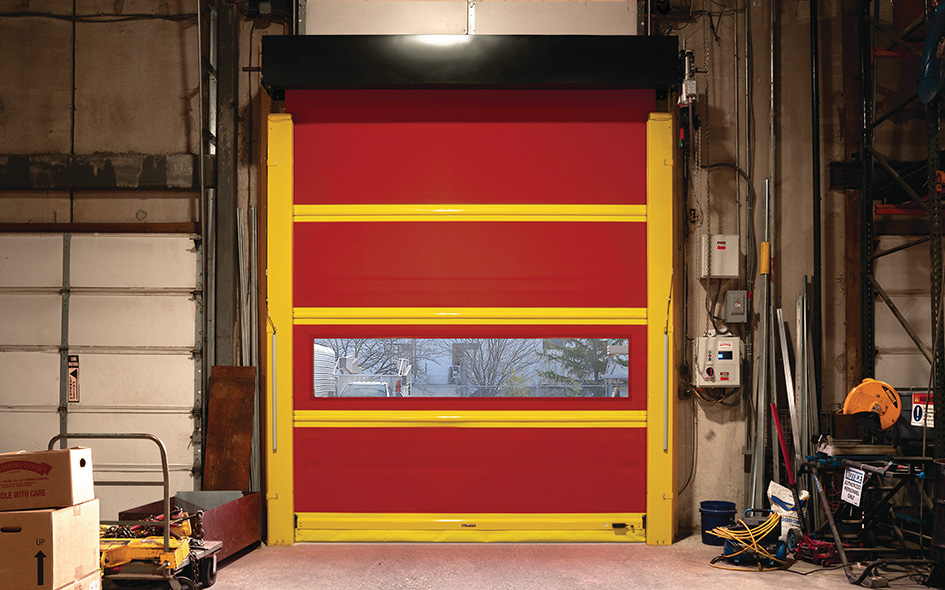

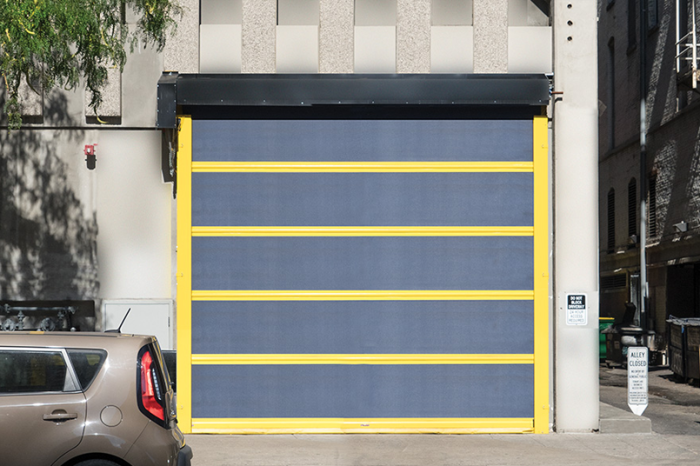

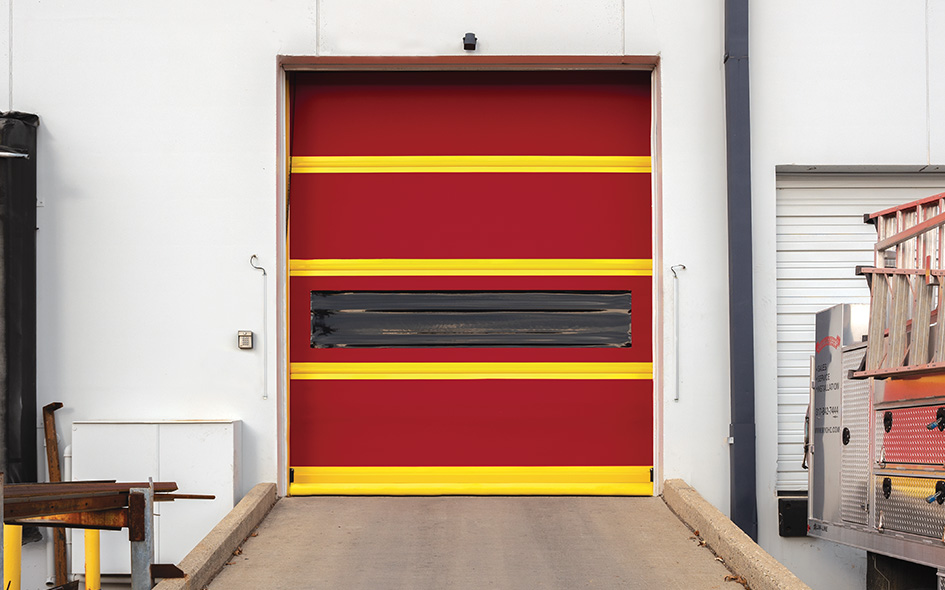

RapidFlex® Model 993 is a strutted, exterior heavy-duty high speed fabric door with independently tested wind load of up to 19.5 psf*. Its industry-leading standard safety features include reversing edge, two sets of infrared obstruction detection sensors and door stop device.
Perfect for parking garages, manufacturing, warehouse and distribution facilities.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 20' |
| Standard Max Height | 20' |
| Speed | Up to 65" per second |
| Break-away Self-reset | Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event |
| Wind Strut | Metal struts with roller windlocks |
| Curtain Material | 3 layers of PVC coated polyester with 2 layers of polyester weave |
| Header Braces | Multiple braces across entire width strengthen and combat sagging |
| Hood | Protection from debris and moisture |
| Operation | Direct drive motor and gearbox system with a door stop device |
| Control Panel |
|
| Obstruction Safety Detection | Infrared sensors mounted in-plane to the door curtain at 18" and 50" - 54" from floor |
| Reversing Safety Edge | Wireless reversing edge |
| Available Supply Voltages** | 208V AC 1PH†, 220V AC 1PH, 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH, 575V AC 3PH† (†requires stand-alone mounted transformer) |
| Wind Load* | Up to 19.5 psf |
** Single phase available up to 10'x10' doors.
* Pressure/wind resistance value is the ultimate pressure tested at door width of 16'.
Warranty
- 5-year Limited
Options
Colors
Red
Blue
Orange
Gray
Bottom Bar & Guide
Safety Yellow
RAL Powder Coat
Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor. The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.
Actuation options
Push button, key switch, pull switch, loop detector, motion detector, treadle switch, radio control. Wireless options available
Signaling device options
Red/green LED warning light, horn/strobe combination, rotating warning light
Programmable LED lighting system
3' tall light bar with red, yellow, green lighting
Sloped hood and non-drive end cover
Protection from debris and moisture
20" high vision panels
spaced evenly across width of door
Light Curtain
Front or rear mounted; available in 3' or 6' models
Brochures
Documents

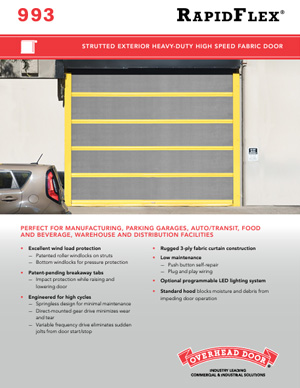

High Speed Exterior Fabric Door - RapidFlex®
