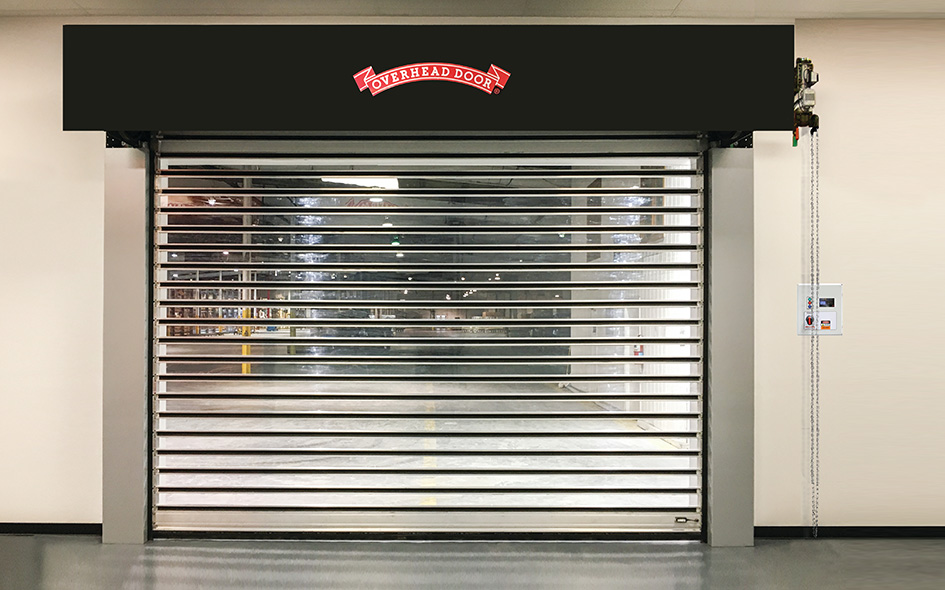

High Speed Exterior Full-View Metal Door – 999
Model 999
Sleek and sophisticated RapidView® Model 999 is a full view door featuring scratch-resistant polycarbonate panels with opening speeds up to 80” per second. Engineered for high cycles and easy operation, RapidView® Model 999 has been independently tested and is capable of wind load up to 50 psf*. The simple install and low maintenance add to the attractiveness of the door and features completely hinged guides, fully assembled curtains and pre-wired motor connection. RapidView® Model 999 is perfect for high traffic applications requiring aesthetic appeal and visibility.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 20′ |
| Standard Max Height | 21′ |
| Speed | Up to 80″ per second |
| Wind Load* | Up to 50 psf |
| Door Material | Aluminum and scratch-resistant polycarbonate |
| Perforated Option | Optional powder coat-matched perforated slat for 24% open area |
| Operation | Direct drive motor and gearbox system |
| Control Panel | Variable frequency drive NEMA 4X cULus listed |
| Obstruction detection | Integrated light curtain |
| Reversing Safety Edge | Wireless reversing edge |
| Electrical Availability | 230V AC 3PH; 460V AC 3PH; 575V AC 3PH† |
*Pressure/wind resistance value is the ultimate pressure tested at door width of 15′.
†requires stand-alone mounted transformer
Warranty
- 5-year limited
Options
Standard Exterior Color
Silver
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
- Multiple actuation options – push button, motion detector, radio control, key switch, pull switch, loop detector, treadle switch
- Signaling devices – red/green LED warning light, horn/strobe combination, rotating warning light
- Slim guide available to reduce jamb side room
- Lintel cover
- Photo eyes
- Programmable LED lighting system – 3′ tall light bar with red, yellow, green lighting
