High Speed Insulated Fabric Doors – 997
Model 997

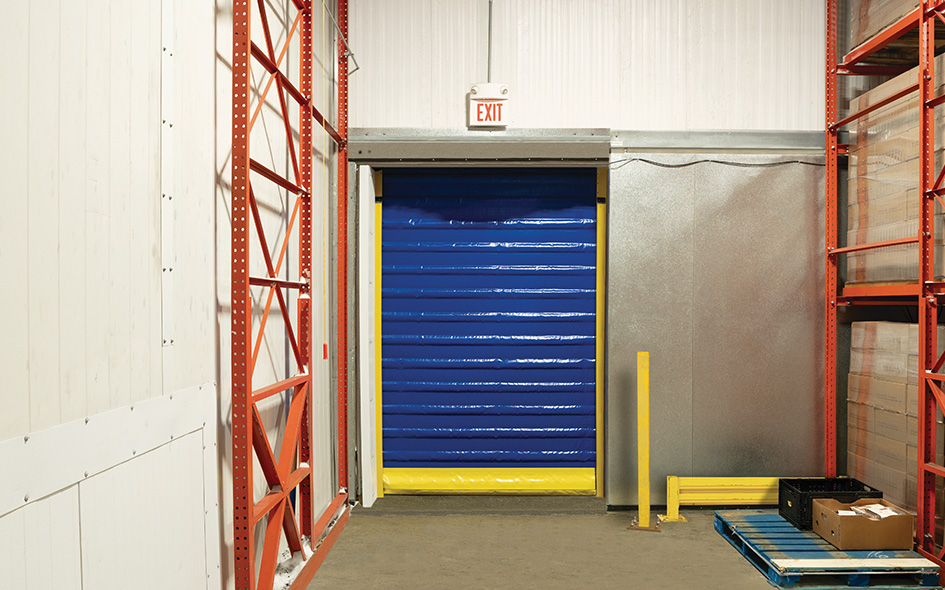

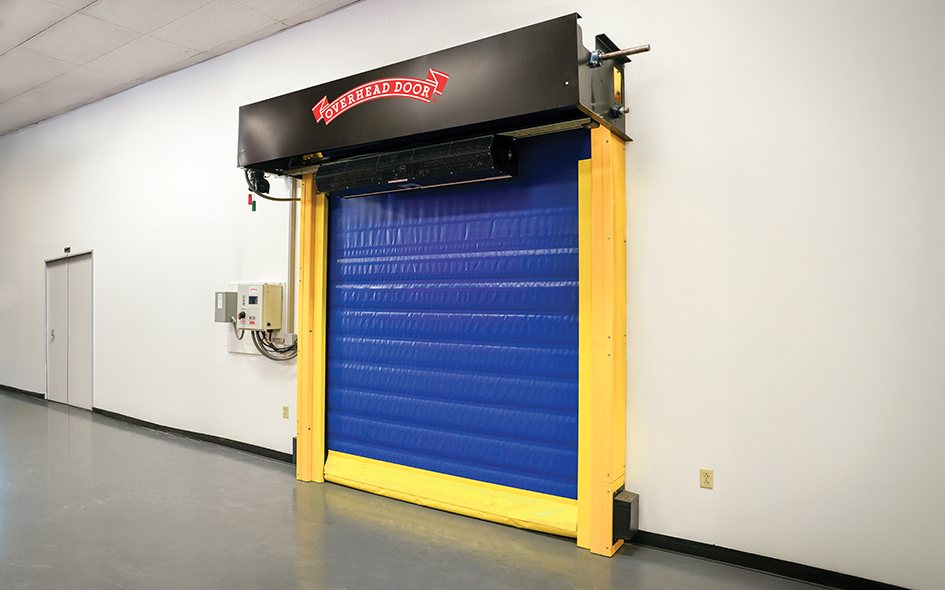

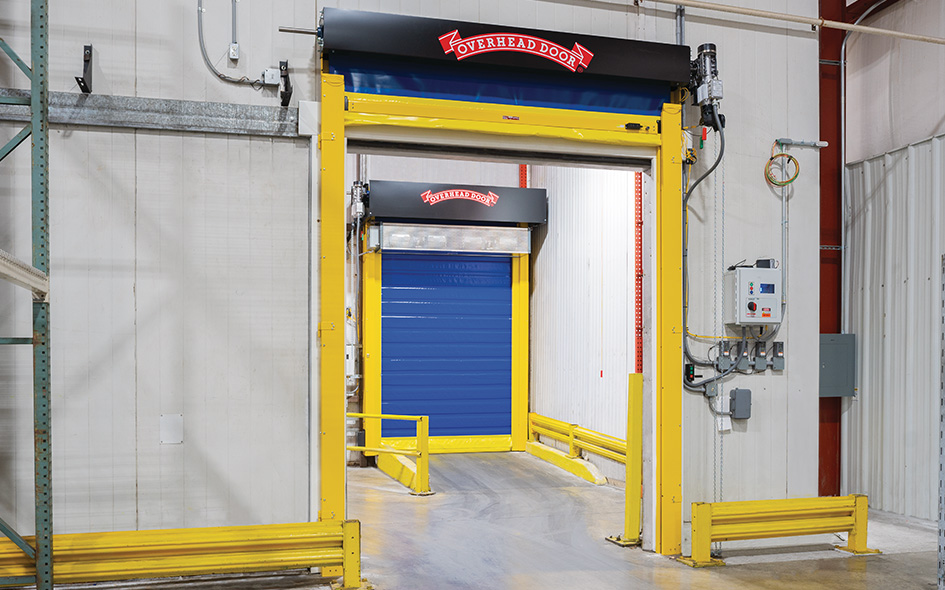

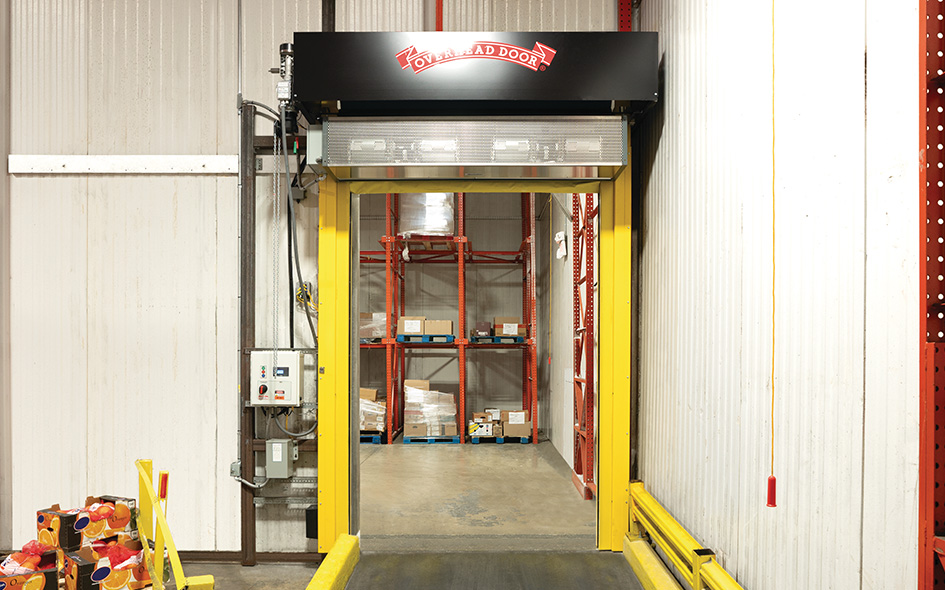

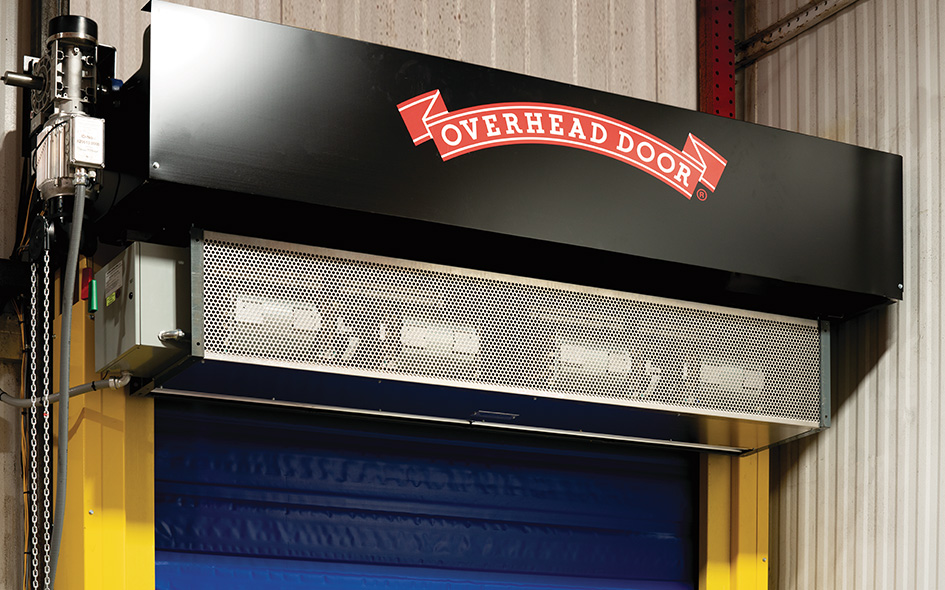

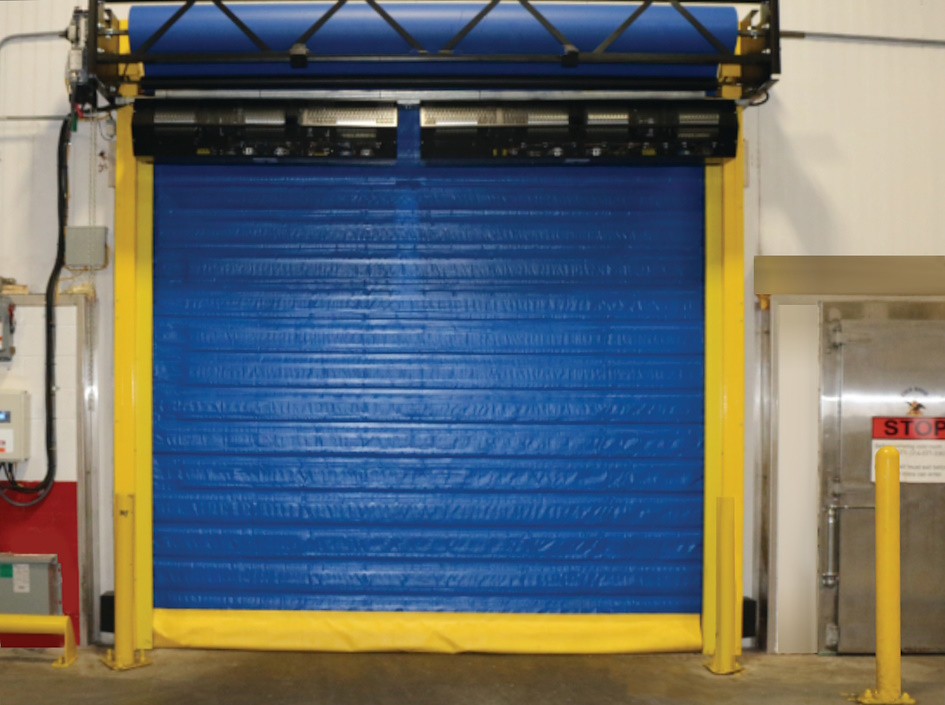

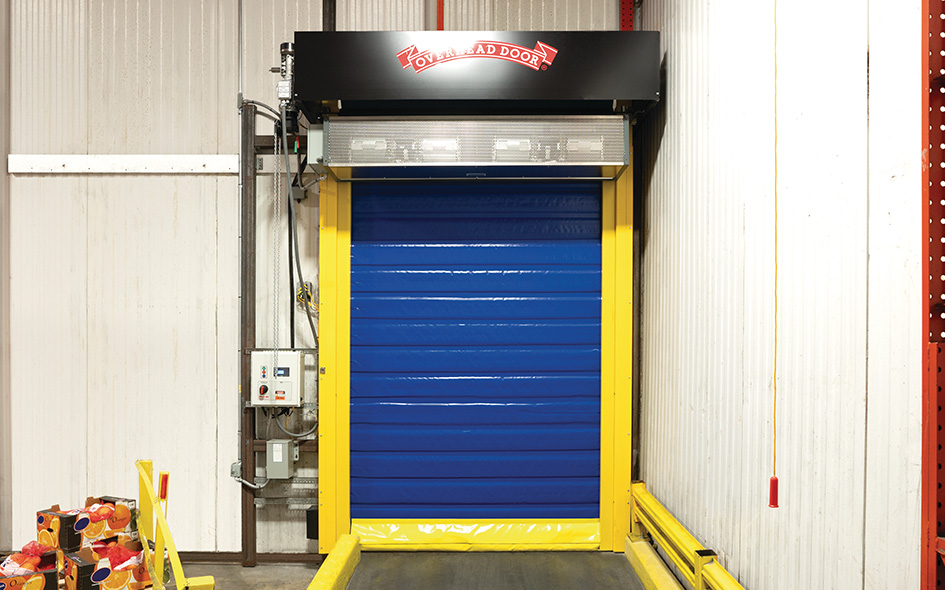

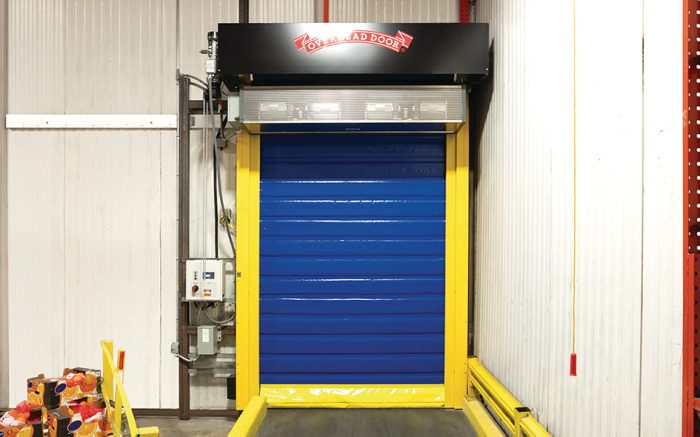

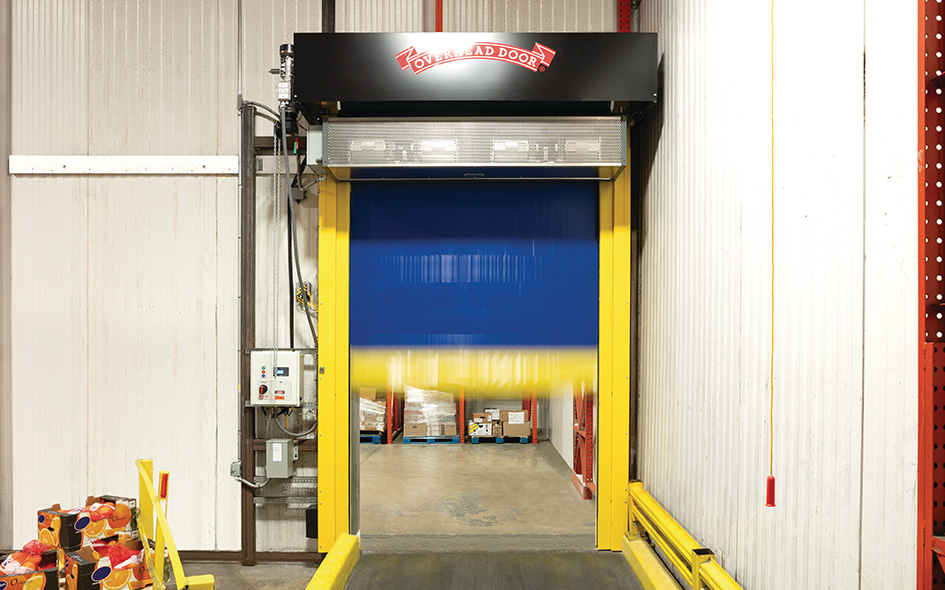

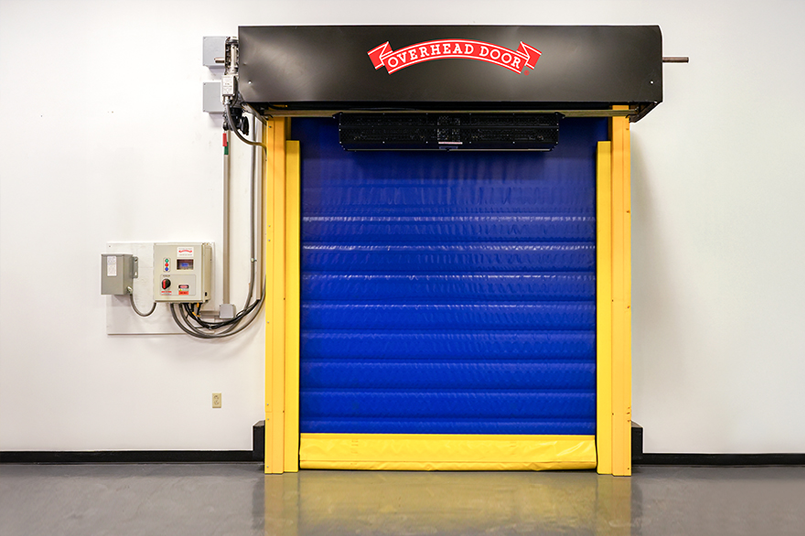

RapidFreeze® Model 997 is an interior fabric high speed freezer and cooler door that features an insulated curtain to prevent heat loss and condensation in settings where temperatures vary greatly on either side of the door opening. With a patented quad-sealed guide design and an optional heated air curtain, this application driven solution is flexible enough to meet the thermal performance needs of demanding temperature and humidity combinations. RapidFreeze® 997 continues the Overhead Door™ brand tradition of delivering superior performance, speed and longevity, while providing cutting edge engineering innovation. This freezer and cooler door has been designed especially for cold storage along with food and beverage facilities.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 12' |
| Standard Max Height | 18' |
| Opening Speed | Up to 80" per second |
| Closing Speed | Up to 40" per second |
| Break-away Self-reset | Yes |
| Curtain Panel | 2 layers of PVC coated polyester with 1 layer of polyester weave and conductive plus radiant insulation |
| Operation | Direct drive motor and gearbox system with a door stop device |
| Control Panel |
|
| Guide Design | Thermally broken, with active heat, quad brush seals and front/rear breakaway capabilites |
| Obstruction Safety Detection | Infrared sensors mounted in-plane to the door curtain at 16" and 50" - 54" from floor |
| Reversing Safety Edge | Wireless reversing edge |
| Electrical Availability | 230V AC 3PH; 460V AC 3PH; 575V AC 3PH† (†requires stand-alone mounted transformer) |
| Wind Load* | Up to 2.0 psf |
* Pressure/wind resistance value is the ultimate pressure tested at door width of 10'.
Warranty
- 5-year Limited
Options
Colors
Red
Blue
Gray
White
Bottom Bar & Guide
Safety Yellow
RAL Powder Coat
Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor. The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.
Actuation options
Push button, key switch, pull switch, loop detector, motion detector, treadle switch, radio control. Wireless options available
Signaling device options
Red/green LED warning light, horn/strobe combination, rotating warning light
Programmable LED lighting system
3' tall light bar with red, yellow, green lighting

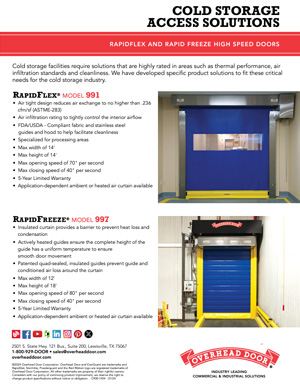

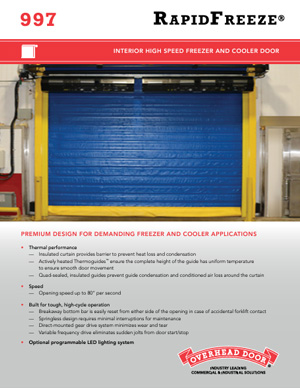

Brochures
