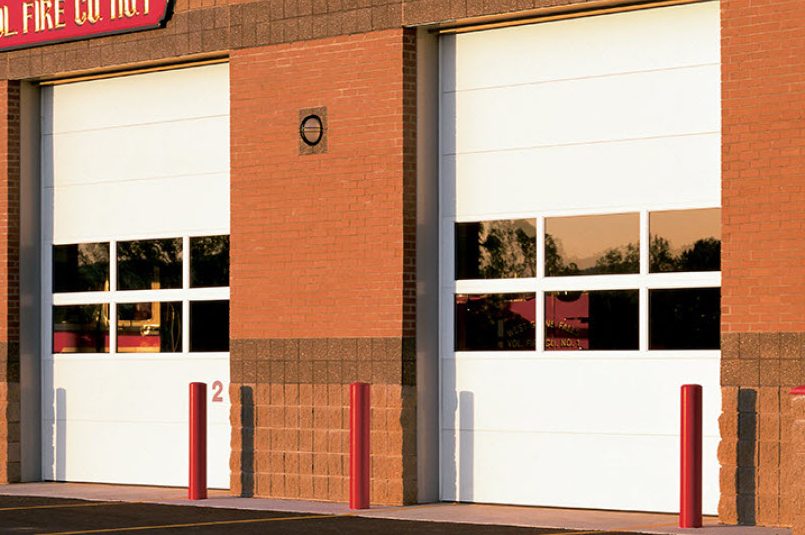

Thermacore® Sectional Steel Door – 596
Model 596
The Thermacore® Sectional Door Model 596 is ideal for extra heavy-duty applications where both thermal efficiency and sound suppression are desirable. The 596 is constructed of 20-gauge galvanized steel with a flush, textured finish. The sectional steel door model 596 incorporates the Thermacore® steel-polyurethane-steel panel construction, which provides a thermal barrier to withstand harsh climates and demanding environmental requirements.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 36’2″ (11,024 mm) |
| Standard Max Height | 24’1″ (7,341 mm) |
| Panel thickness | 2″ (51 mm) |
| U-factor* | .10 |
| R-value** | 17.4 (3.06 W/m2) |
| Sound Transmission Class 26 | Ideal for applications that require sound control |
| Air infiltration | at 25 mph (40 kmp/h) .13 cfm/ft2 (2.37 m3/hr/m2) |
| Thermal break | PVC |
| Exterior Steel | 20-gauge galvanized |
| Exterior Surface | Flush, textured |
| Standard Springs | 10,000 cycles |
*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door uses a calculated door section R-value for our insulated doors.
Warranty
- 10 year limited delamination
- 1 year limited on door
- 3 year/20,000 cycle limited on door & operator system (when purchased together; on material and workmanship)
Options
Flush Panel
Exterior Colors
White
Gray
Tan
Industrial Brown
Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.
- Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
- Aluminum sash section available up to 24’2″ (7,366 mm) wide
- Insulated glass, tempered glass, polycarbonate, multi-wall polycarbonate, etc.
- Four-section pass door
- High-usage package
- Wind Load options
- Electric operator
- Chain hoist
- Posi-Tension™ drums
- Safety bottom fixture
- Bottom-sensing edge
- Flexible jamb, header seal
- Exhaust ports
- Window Glazing Options
- Impact Section Available
Documents
Thermacore® Sectional Steel Door
