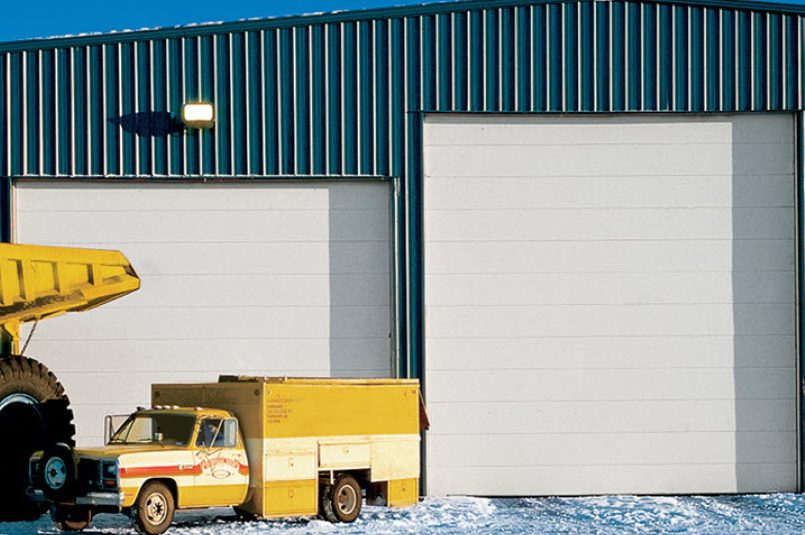

Thermacore® Sectional Steel Door – 599
Model 599
With a U-factor of .10 (R-value of 17.5), and one of the best overall air infiltration ratings in the industry, the Thermacore® Sectional Steel Door Model 599 is one of the most thermally efficient door systems in its class. The Model 599 doors also carry a Class 26 sound transmission rating for applications where sound suppression is desirable.
The Thermacore® line features steel-polyurethane-steel panel construction which provides a thermal barrier that withstands extremely hot or cold climates and the most demanding environmental requirements.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 40’2″ (12,243 mm) |
| Standard Max Height | 32’1″ (9,779 mm) |
| Panel thickness | 2″ (51 mm) |
| U-factor* | .10 |
| R-value** | 17.5 (3.09 W/m2) |
| Sound Transmission Class 26 | Ideal for applications that require sound control |
| Air infiltration | at 25 mph (40 kmp/h) .13 cfm/ft2 (2.37 m3/hr/m2) |
| Thermal break | PVC |
| Exterior Steel | .015″ (.38 mm) galv. |
| Exterior Surface | Flush, textured |
| Standard Springs | 10,000 cycles |
| Wind Load | Designs available for usage in high-wind conditions |
*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door™ brand uses a calculated door section R-value for our insulated doors.
Warranty
- 10 year limited delamination
- 1 year limited on door
- 3 year/20,000 cycle limited on door & operator system (when purchased together; on material and workmanship)
- 20 year limited on high performance fluoropolymer coating option
Options
Flush Panel
Exterior Colors
White
Actual door color may vary slightly from the digital representation above. Color samples are available by request through your Overhead Door™ Distributor.
- Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
- Aluminum sash section available up to 24’2″ (7,366 mm) wide
- Insulated glass, tempered glass, polycarbonate, multi-wall polycarbonate, etc.
- Four-section pass door
- High-usage package
- Wind load options
- Electric operator
- Chain hoist
- Posi-Tension™ drums
- Safety bottom fixture
- Bottom-sensing edge
- Flexible jamb, header seal
- Exhaust ports
- Impact Section Available
Brochures
Documents
Thermacore® Sectional Steel Door
Related products
Sectional Steel Door Model 420
Model 420
Sectional steel door model 420 is designed for heavy-duty use in a variety of commercial and industrial applications. The Model 420 door features a 2" (51 mm) panel thickness, 16-gauge steel intermediate and end stiles, ribbed steel exterior and a white paint finish. This 20-gauge steel door is available in sizes up to 31´2" (9500 mm) in width and 24´1" (7341 mm) in height. Numerous options including weatherstripping, reinforced struts, movable center posts, and motor operation allow these heavy-duty doors to meet nearly any project requirements.
Sectional Steel Door Model 430
Model 430
Sectional steel door model 430 is available in sizes up to 20´2" (6147 mm) in width and 16´1" (4902 mm) in height for a variety of medium-duty applications. These doors feature a 2" (51 mm) panel thickness and a nominal 24-gauge, ribbed, white galvanized steel exterior with 16-gauge steel intermediate and end stiles (Industrial Brown exterior is available). The Model 430 is customizable to any project specification with a variety of additionally available options.

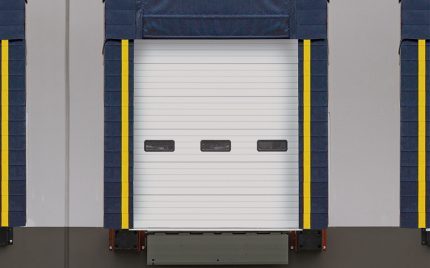

Sectional Warehouse Doors
