EverGuard™ Forced Entry Shelter Door – 610FE
Model 610FE
When safety and protection of property is a priority, Model 610FE withstands the tough requirements for commercial applications. Model 610FE is ballistics rated for .22 LR – .38 special (NIJ 0108.01) and meets the requirements for up to 30 minutes of forced entry per ASTM F3038-21.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 16′ |
| Standard Max Height | 16′ |
| Curtain | 12-gauge galvanized steel |
| Finish | Gray |
| Hood | 24-gauge galvanized steel |
| Standard mounting | Face-of-wall |
| Operation | RSX® service door operator |
| Standard Spring | 10,000 cycle |
| Guides | Three steel angles |
| Bottom Bar | Double angle steel |
| Forced Entry ASTM F3038-21 | Up to 30 minutes |
| Obstruction detection | Wireless reversing edge |
| Ballistics Rating | .22 LR – .38 special (NIJ0108.01) |
| Slat Profile |
C-600 slat – a curved slat profile that measures 6″(152 mm) in height and 1 3/8″ in depth. Slats can be replaced quickly, minimizing downtime.
|
Warranty
- 3-Year Limited; 10K Cycle limited on door system
Options
Standard Exterior Color
Gray
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
Door Options
- Galvanized steel bottom bar and angles
- PowerGuard® Weathered finishes to provide a thicker, more scratch resistant coat for added protection
- Mount Type; Bench, Top or Wall Mount
Actuators
- Photo eyes for additional obstruction detection
- Motion Detector
- Loop Detector
- Horns and strobes
- Key Switch
- Pull Station
- Additional Push Button Stations
- Transmitter

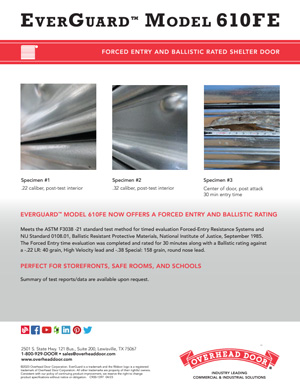

Brochures
