Fire-Rated Rolling Counter Door – 662
Model 662

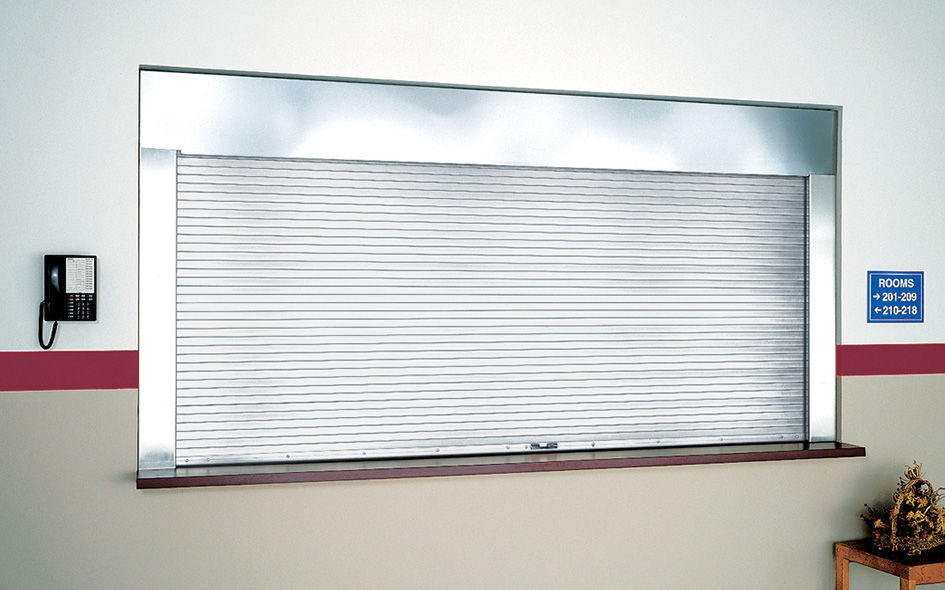

Fire-Rated Counter Doors with Galvanized Steel Curtain, Stainless Steel Frame and Hood
Model 662 fire-rated counter doors an integral frame are suited for many applications including schools, retail settings, hospitals, food service counters, concessions and cafeterias. These doors fit openings up to 9’5” x 4’5” (2870 mm x 1346 mm) and carry a UL 1-1/2 hour label for masonry and non-masonry fire walls. Model 662 integral frame doors are assembled at the factory as a complete unit with fully welded frames. The curtain is 22-gauge galvanized steel with baked-on polyester top coat; while the frame, guides, sill, hood and fascia are stainless steel.
Other safety and protection features are available, including: Fire Sentinel® time-delay release device, smoke detectors, horns, and strobes.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 9’5″ (2870 mm) |
| Standard Max Height | 4’5″ (1346 mm) |
| Labels | UL 1-1/2 hour Class B for masonry and non-masonry fire walls |
| Operation | Manual Push-up |
| Curtain | Interlocking 22-gauge galvanized steel slats with baked-on polyester top coat in gray |
| Integral frame and guides | No. 4 finish stainless steel |
| Bottom bar | To match curain material |
| Sill | 14-gauge stainless steel sill completely enclosed with fireproof acoustic filler |
| Fire doors are in compliance with: | National Fire Protection Association (NFPA-80) |
| Hood | No. 4 finish stainless steel |
| Counterbalance | Helical torsion spring, housed in a steel tube or pipe barrel with adjustable tension wheel |
| Mounting | Between jambs |
Warranty
- OEM limited
Options
Exterior Color Options:
Gray
Actual door color may vary slightly from the digital representation above.
Door Options
- Fire Sentinel® time-delay release device
- UL listed brush-type smoke seal
- Smoke detectors
- Locking mechanisms: cylinder locking bottom bar with mortise cylinders
- Horns and horns with strobes
Documents

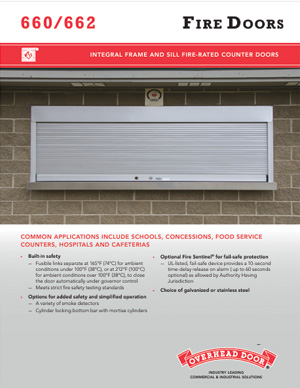

Fire-Rated Rolling Counter Door
