Fire-Rated Rolling Service Door – 631
Model 631

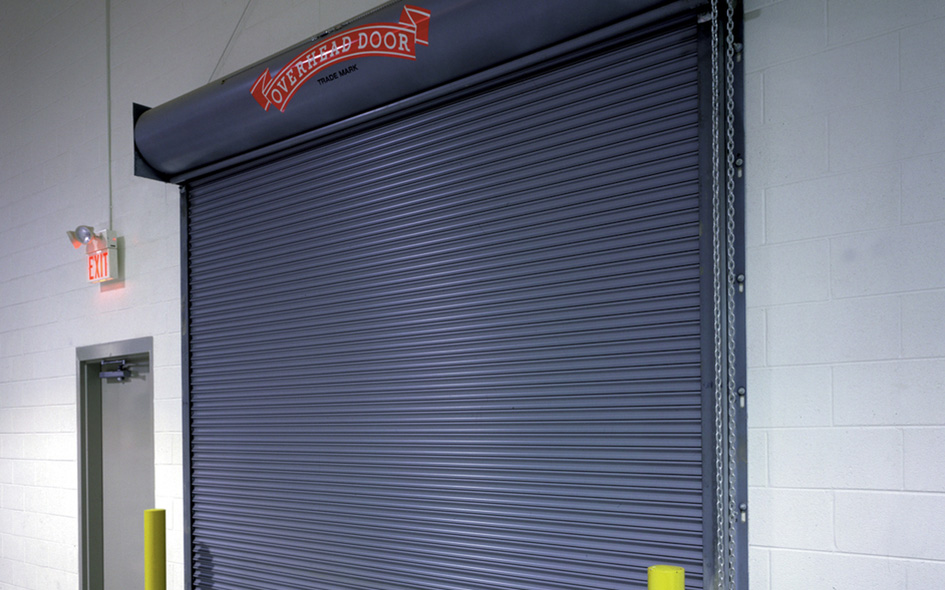

FireKing® Model 631
Fire-rated service door model 631 is a smaller fire door with UL/ULC ratings. The FireKing® Model 631 rolling fire-rated service door offers superior protection wherever a small UL listed fire door is required.
Additional safety and protection features are available, including: Fire Sentinel® time-delay release device, FireLite® vision lites, smoke detectors, horns and strobes
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 14' (4267 mm) |
| Standard Max Height | 12' (3658 mm) |
| Curtain | Painted galvanized Standard baked-on paint finish available in gray, tan, white or brown |
| Guides | Three structural steel angles. PowderGuard® Weathered finish with black powder coat. |
| Labels available for masonry or non-masonry applications | UL/ULC 1-1/2 hr UL/ULC 3 hr UL oversized door |
| Mechanical auto resettable hoist (non-motorized) | Enables easy drop test and reset of fire door in seconds |
| Fusible link for added safety | Separates at 165°F (74°C) to automatically close the door in case of fire |
| Viscous governor technology | Controls rate of door descent during a fire while reducing noise and vibration for quieter door operation |
| Innovative planetary gear design | Ensures years of reliable service and drop-out performance |
| Fire doors are in compliance with: | National Fire Protection Association (NFPA-80) Underwriters Laboratories (UL & ULC) New York City (MEA) State of California (CSFM) |
Warranty
- 2-year material and workmanship
Fire-Rated Door 631 Mounting Chart
Slat selection and finishes
Fire door slats are available in curved or flat profile in either galvanized steel. Galvanized slats are finished with a rust-inhibitive, roll-coating process that incorporates baked-on prime paint, and a baked-on polyester top coat of gray, tan, white or brown.
Options
Standard Exterior Color
White
Gray
Tan
Brown
Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
Door Options
- Operation: push-up, chain hoist, crank and electric motor (RHX® or RSX®)
- Fire Sentinel® time-delay release device
- FireLite® vision lites (F265 slat profile only)
- UL-listed brush-type smoke seals
- Smoke detectors
- Horns and horns with strobes
- Cylinder locking bottom bar with mortise cylinder
- Wind load (FBC, TDI, Miami-Dade)
- PowderGuard® Premium powder coat finish options are available in approximately 200 colors as well as custom matching to specification.
- PowderGuard® Zinc and PowderGuard® Weathered finishes
Brochures
Documents
Fire-Rated Rolling Service Door
