Wood Rolling Counter Doors – 665
Model 665

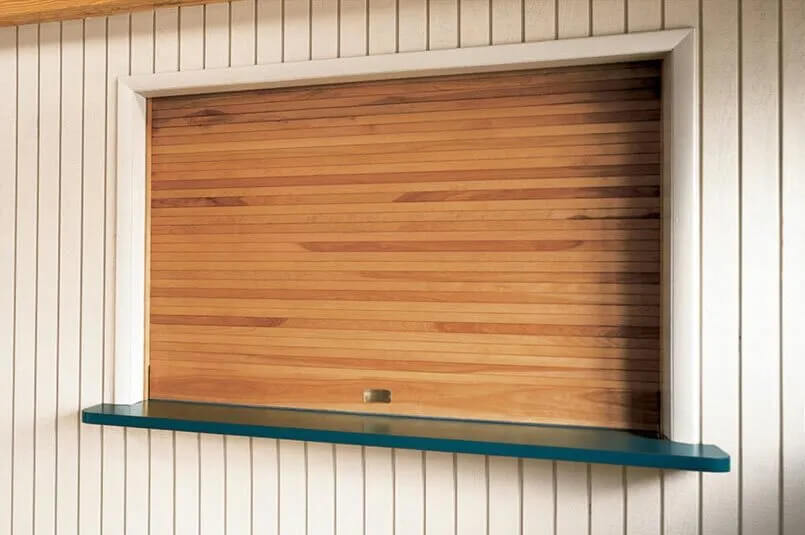

These wood counter doors offer the richness of natural wood to enhance the beauty of any application. Manufactured of high-quality wood – Red Oak (standard), Douglas Fir, White Oak, Birch or Exotic species — these counter doors are ideal for use in hotels, banks, churches, libraries, offices, restaurants and schools.
Overview
| Standard Max Width | 12′ (3658 mm) |
| Standard Max Height | 8′ (2438 mm) |
| Curtain | Red oak, Douglas Fir, White Oak, Birch |
| Slats | Wood slats, 1 3/4″ (16 mm) high by 1/2″ (13 mm) thick |
| Finish | Unfinished |
| Guides | Aluminum Guides |
| Bottom Bar | Wood to match slats |
| Mounting | Face of wall, between jambs |
| Lock | Thumb-turns |
| Operation | Manual push up |
| Warranty | OEM limited |
Options
- Crank or electric operation
- Additional wood species: Douglas Fir, White Oak, Birch and Exotic
- Hood in wood to match slats or aluminum
- Aluminum guides
- Cylinder lock
Documents
Rolling Counter Doors
