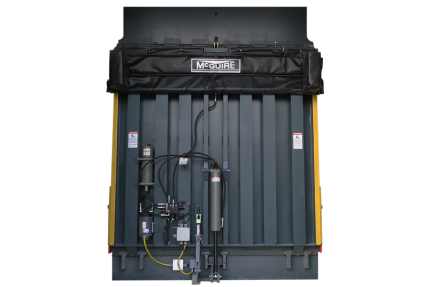

H SERIES AUTODOK® HEAVY DUTY HYDRAULIC
Pit Style Hydraulic Dock Leveler
The “H” Series hydraulic dock leveler is structurally designed for the most demanding applications with easy push button convenience for smooth, consistent operation plus outstanding toughness and dependability in your most challenging dock operations. McGuire offers a hydraulic dock leveler to meet any of your dock equipment needs while providing low lifetime ownership costs and years of trouble free service with the industry’s best built-in safety. They are most often mounted in a pre-formed pit at the dock commonly used to reduce the grade between the dock floor and the trailer bed. Various sizes and capacities allow for a large amount of flexibility. Hydraulic levelers have added safety features and save time in operation and maintenance.
The H Series comes in 6’, 6’6” & 7’ standard widths and 6’, 8’ & 10’ standard lengths with 12’ and other lengths available. Standard capacities for the “H” Series are 45K, 55K, 75K and 100K CIR (Comparative Industry Rating).
SPECIFICATIONS
| MODEL | NOMINAL SIZE |
|---|---|
| H-66 | 6' x 6' |
| H-68 | 6' x 8' |
| H-610 | 6' x 10' |
| H-612 | 6' x 12' |
| H-656 | 6'6" x 6' |
| H-658 | 6'6" x 8' |
| H-6510 | 6'6" x 10' |
| H-6512 | 6'6" x 12' |
| H-76 | 7' x 6' |
| H-78 | 7' x 8' |
| H-710 | 7' x 10' |
| H-712 | 7' x 12' |
| DYNAMIC CAPACITY / COMPARATIVE INDUSTRY RATING |
|---|
| 22,500 / 45,000 |
| 27,500 / 55,000 |
| 37,500 / 75,000 |
| 50,000 / 100,000 |
