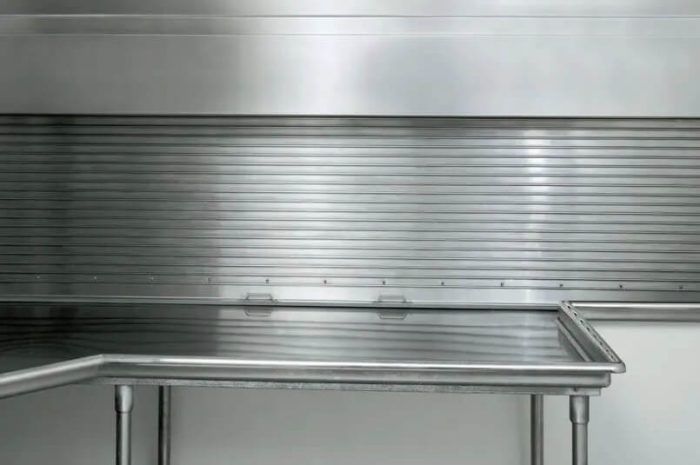

Integral Frame Rolling Counter Doors – 657
Model 657
The integral frame / packaged counter door Model 657 combines an attractive finished appearance with the convenience of a factory-assembled unit. These non-rated doors feature a high-quality 16-gauge stainless steel frame, hood and fascia complemented by a 14-gauge stainless steel sill. Available to fit openings up to 12’5″ (3785 mm) wide and 6’5” (1956 mm) high, these rolling counter doors have a variety of applications including food service areas.
Overview
| Standard Max Width | 12'5" (3785 mm) |
| Standard Max Height | 6'5" (1956 mm) |
| Curtain | .04" (1 mm) aluminum slats |
| Hood | Stainless steel |
| Integral frames | 16-gauge stainless steel |
| Sill | 14-gauge stainless steel |
| Mounting | Between jambs |
| Operation | Manual push up |
| Warranty | OEM limited |
Options
- Crank operation
- Cylinder locking options
- Tubular bottom bar
- Lintel brush seal
- Guide brush seal
Documents
Rolling Counter Doors
Related products

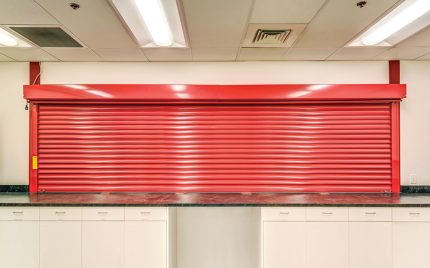

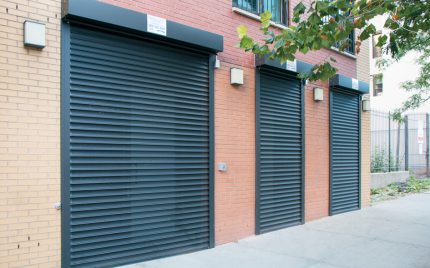

Allura®
Model 653
Rolling Security Shutters
The Allura® Rolling Shutters are a next generation light-duty door solution that is versatile enough for specialty uses and has a space-saving design, making it perfect for installations with limited side room and headroom. Multiple perforation and fenestration options allow for many configurations with the right amount of light and air passage. Versatile and attractive, the Allura® shutter is perfect for security in high pedestrian traffic areas. Heavily visited areas such as retail stores, pharmacies and hospitals often need the security that a security shutter door offers as well as the flexibility in the aesthetic options to match the surrounding environment.
Fire-Rated Insulated Rolling Service Door – 635
Model 635
The FireKing® Insulated Fire-Rated Doors Model 635
Our insulated fire-rated rolling service door offers superior protection wherever a listed insulated fire door is required (max. width 24’; max. height 24’). The Model 635 insulated rolling steel door serves as a thermal barrier, ideal for applications which require separation due to climate control requirements. The insulation used in this door offers added energy efficiency (R-value of 4.5), sound transmission control (STC 21), and the mineral wool utilized in the slat insert meets the Smoke and Flame Index of 5. Common masonry and non-masonry mounted applications include: facilities with paint booths, file rooms, material storage locations, warehouses, shared walls between businesses, public record storage, and public buildings such as libraries. The Model 635 insulated fire door is available with UL (FM optional) labels for 1-1/2, 3, 4 and oversized doors. These doors feature a mechanical auto resettable hoist (non-motorized) that enables easy drop test and reset of the fire door in just seconds. Fusible links are mounted on both sides of the wall that separate to automatically close the door in case of fire. Additional safety and protection features are available, including: Fire Sentinel® time-delay release device, FireLite® vision lites, smoke detectors, horns and strobes.
Fire-Rated Rolling Counter Door – 662
Model 662
Fire-Rated Counter Doors with Galvanized Steel Curtain, Stainless Steel Frame and Hood
Model 662 fire-rated counter doors an integral frame are suited for many applications including schools, retail settings, hospitals, food service counters, concessions and cafeterias. These doors fit openings up to 9’5” x 4’5” (2870 mm x 1346 mm) and carry a UL 1-1/2 hour label for masonry and non-masonry fire walls. Model 662 integral frame doors are assembled at the factory as a complete unit with fully welded frames. The curtain is 22-gauge galvanized steel with baked-on polyester top coat; while the frame, guides, sill, hood and fascia are stainless steel. Other safety and protection features are available, including: Fire Sentinel® time-delay release device, smoke detectors, horns, and strobes.
Rolling Counter Doors – 650
Model 650
Distinguished by their painted galvanized steel slat curtain finish, Model 650 rolling counter doors are designed to fit openings to 20' wide and 9' high. These doors are ideal for a host of small-opening applications where security is important and a non-rated door is appropriate. Common applications include concession areas, cafeterias, pharmacies, parts-storage areas and ticket windows.
Rolling Integral Frame Counter Doors – 655
Model 655
The integral frame / packaged counter door Model 655 combines an attractive finished appearance with the convenience of a factory-assembled unit. These rolling counter doors feature a high-quality 16-gauge stainless steel frame, hood and fascia complemented by a 14-gauge sill. Available to fit openings up to 12'5" (3785mm) wide and 6'5” 1956 mm) high, these rolling counter doors have a variety of applications including food service areas.

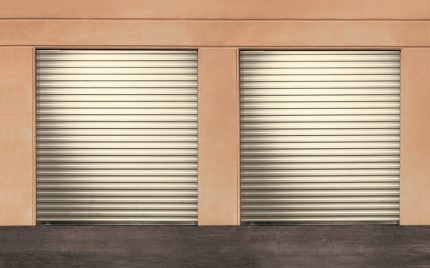

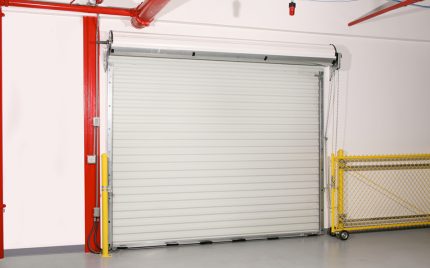

Rolling Sheet Door – 780CD
Model 780CD
ProStar™ Model 780CD
The Model 780CD rolling sheet door is designed to fit openings up to 16' by 16' (4877 mm by 4877 mm) with ease, versatility, and good looks. The Model 780CD is designed for heavy-usage environments where a high wind load-rated door is not required. Like the Model 790CW, this heavy-duty door is fabricated of high strength, 26-gauge galvanized steel curtain sections for superior performance. It also features our innovative quick-connect components that allow quick and easy assembly without sacrificing stability or durability. Stepped counterbalance rings and a unique curtain profile minimize nesting. The universal guide design further simplifies installation by allowing mounting directly to concrete, masonry, steel or wood jambs. Additional standard features such as dual rub strips on both edges of guide and a flexible webbing on both front edges of the curtain to minimize nesting ensure that the Model 780CD will provide long-lasting, lower-cost performance for years to come.

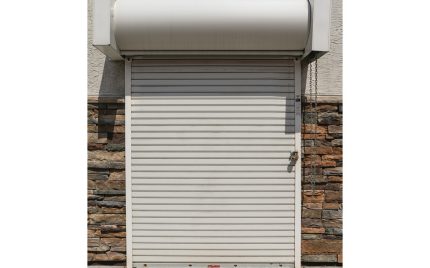

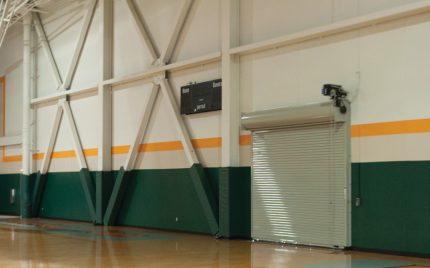

Rolling Steel Service Door – 600
