Options for Bolt-On Curb Dock Boards

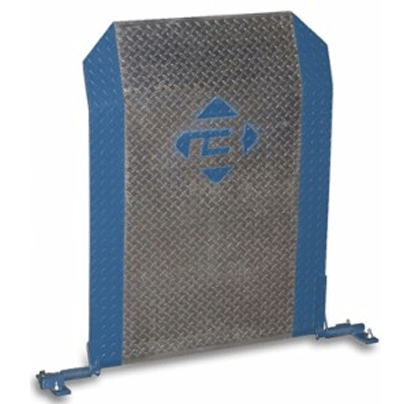

Bolt-On Curb Dock Boards
The Bolt-On Curb Dock Board is designed for easy handling and efficient dock loading without requiring a forklift. It offers a secure solution for seamless material transfer and is engineered for convenience and durability.
Related products
“HP” SERIES STANDARD DUTY HYDRAULIC
Pit Style Hydraulic Dock Leveler
The HP Series hydraulic dock leveler is designed with dependability and toughness in mind for your medium to lighter duty applications. The “HP” offers the same easy push button smooth, consistent operation as the heavy duty H series and the same built in safety, durability and toughness. Easy clean out and servicing are features of all McGuire levelers. Your budget, your safety and trouble free service are always number one with McGuire. They are also most often mounted in a pre-formed pit at the dock commonly used to reduce the grade between the dock floor and the trailer bed. Various sizes and capacities allow for a large amount of flexibility. Hydraulic levelers have added safety features and save time in operation and maintenance.
This series comes in 6’, 6’6” & 7’ standard widths and 6’, 8’ & 10’ standard lengths with 12’ and other lengths available. Standard capacities are 25K, 30K, 35K and 40K CIR (Comparative Industry Rating).
Mechanical Pit Leveler M68R & M78R
- Fast, safe install with height adjusters operated while standing on building floor-no need for installer to be under leveler and no shimming/welding needed in rear of pit
- Adjusters quickly position the dock level with the building floor Improved safety — the installer is never under the leveler
- Levelers ship with four steel fork loops bolted to the deck, which improves stability when lifting from a truck. The loops help with forklift placement into a pit from inside or outside the building, and helps to minimize levelers sliding while stacked on top of each other
- Cut outs identify weld points to the curb angle for faster installation
- Lifter arm is mounted to the rear of the frame instead of sitting on pit floor. No need to shim or weld under the lifter arm
- Base frame is open all the way to the rear of the pit for easy access with no cross beams or places to trap debris
- C-channel beams create a strong deck structure and allows moisture to dry
- Deck design eliminates the transition angle which is a frequent repair on many levelers
- Deck hinge is fully supported across the entire width of the deck to enhance long term durability
- Durable textured powder coat finish
- Compliant with ANSI MH30.1-2022
- Designed with an optimized beveled lip to reduce bumps and damage to cargo and material handling equipment
- Reduces shocks and jolts to workers by creating a level pathway
- Facilitates fast movement of material handling equipment and forklifts
- Release chain for deck operation is user friendly and easy to pull
- The hold down is easy to operate
- Leveler is well-balanced for quick, easy articulation and automatically maintains positive lip contact with trailer movements
- The snubber chain and maintenance brace are positioned at side edges allowing easy access to the pit for maintenance and cleaning
MP SERIES MECHANICAL LEVELERS
MP Series Mechanical Levelers
Reliable, Cost-Effective Dock Leveling
The MP Series Mechanical Leveler offers smooth, dependable operation with a finger-tip release pull chain activation. Engineered for budget-friendly durability, it features a cam and roller counterbalance system for effortless walk-down to the trailer bed, with below-dock capability included. The floating hold-down design adapts to air ride trailers, while the full-width rear compression hinge enhances strength and longevity.
Spring Loaded Aluminum Dock Plate
Spring Loaded Aluminum Dock Plate
Effortless Dock Access for Repeated Truck Servicing
The Spring Loaded Aluminum Dock Plate (SL Plate) is a practical solution for docks that repeatedly service the same type of truck. Designed for manual loading methods such as hand trucks and dollies, it features a spring-loaded mechanism that allows it to be quickly lowered into place for use and effortlessly lifted back into a vertical storage position when not needed. Mounted on top of the dock, it requires minimal installation. The diamond deck aluminum plate ensures a non-skid surface, with optional 3M adhesive grit strips for enhanced traction. Each SL Plate is custom-built to fit specific dock locations and operational needs.
Steel Dock Board (TFL-SB)
Steel Dock Board (TFL-SB)
Speedy Board™ – Effortless Positioning, Maximum Safety
The Steel Dock Board (TFL-SB) combines the strength of a "T" designed board with the convenience of a fixed-leg option. Enhanced with the Speedy Board™ feature, it includes fork cutouts on the leading edge, allowing forklift operators to scoop, position, and retrieve the board without leaving the safety of the forklift cage. Designed for efficient dock loading, this innovation streamlines operations while maintaining safety.
SB Option can be added to TFL, TNB, and SC boards at no charge.
Not recommended for below-dock loading.
Steel Dock Board (TNB)
Steel Dock Board (TNB)
Strong, Secure, and Easy to Position
The Steel Dock Board (TNB) features a single-bend design with a lifting chain and full-width locking legs for enhanced stability and secure placement during loading operations. Built for durability, it provides a reliable bridge between the dock and the trailer.
Not recommended for below-dock loading.
VSH SERIES VERTICAL STORING HYDRAULIC LEVELER
VSH Series Vertical Storing Hydraulic Leveler
Optimized for High-Security and Temperature-Controlled Dock Operations
The VSH Series Vertical Storing Hydraulic Leveler is engineered for demanding dock environments, providing push-button operation, exceptional durability, and low maintenance costs. Its vertical storing design enhances climate control, security, and facility cleanliness, making it ideal for temperature-sensitive and high-security applications.
