Rolling Counter Doors – 652
Model 652

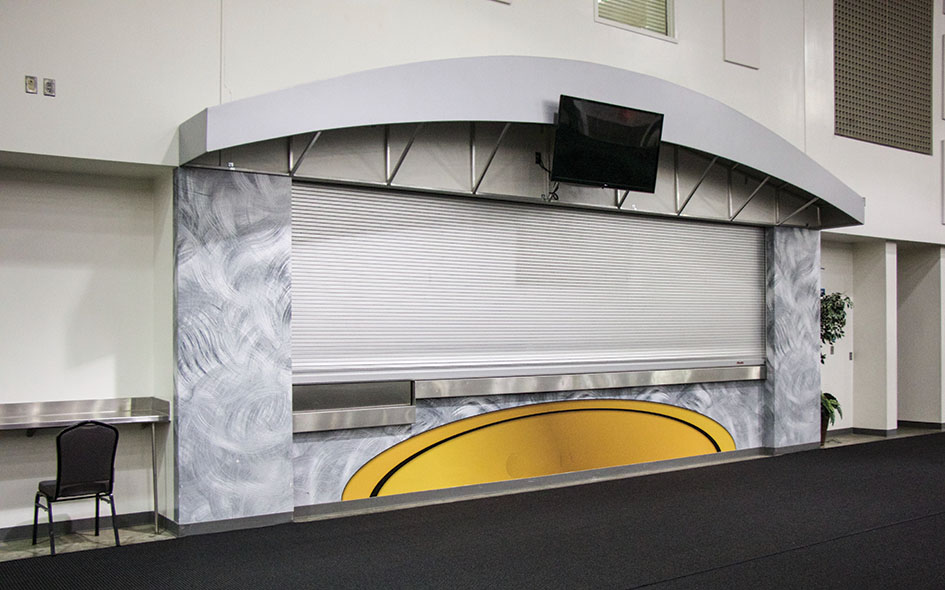

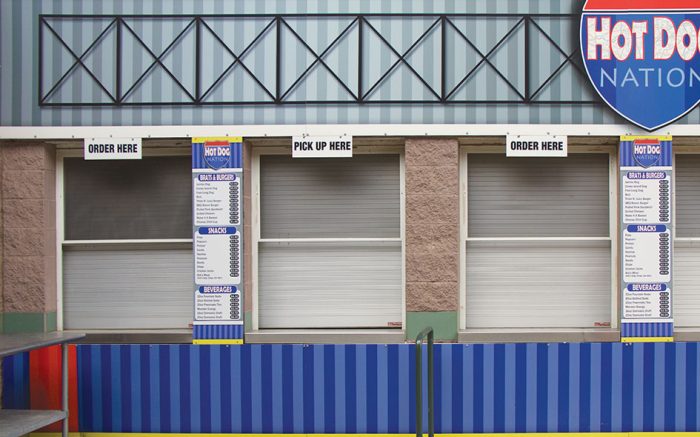

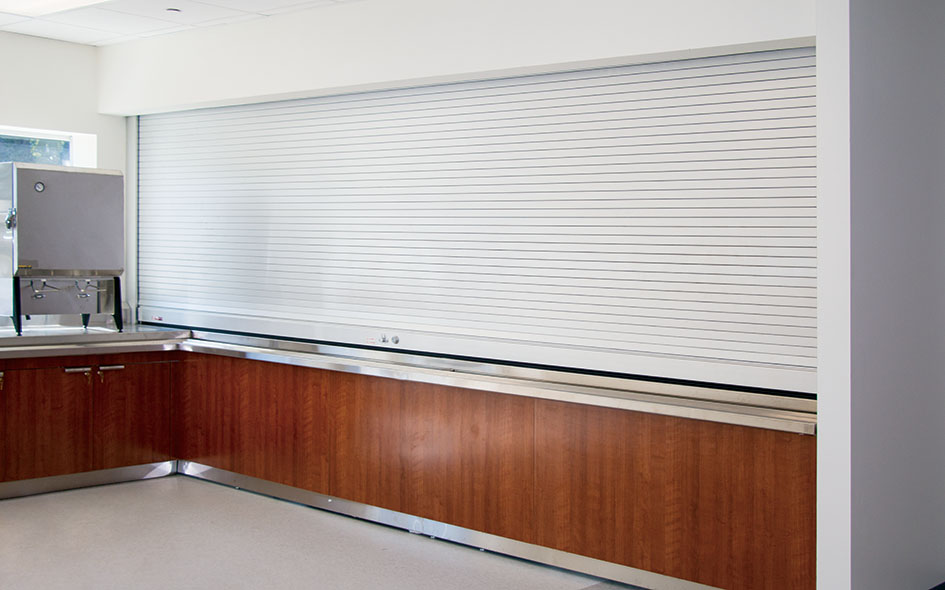

Distinguished by their clear anodized aluminum curtain finish, Model 652 rolling counter doors are designed to fit openings to 20′ wide and 9′ high. These doors are ideal for a host of small-opening applications where security is important and non-rated door is appropriate. Common applications include concession areas, cafeterias, pharmacies, parts-storage areas and ticket windows.
Overview
| Standard Max Width | 20' (6096 mm) |
| Standard Max Height | 9'0" (2743 mm) |
| Curtain | Interlocking flat profile slats (F-158) with endlocks; Aluminum |
| Hood | Aluminum |
| Finish | Clear anodized aluminum |
| Brackets | Steel plate to support curtain, counterbalance and hood |
| Guides | Extruded aluminum |
| Counterbalance | Helical torsion springs housed in a steel tube or pipe barrel |
| Mounting | Face of wall, between jambs |
| Operation | Manual push up |
| Lock | Interior slide bolt |
| Warranty | 24 - month limited |
Options
- Crank or electric operation
- PowderGuard® Premium powder coat finish options are available in approximately 200 colors as well as custom matching to specification.
- PowderGuard® Zinc and PowderGuard® Weathered finishes
- Vision lites
- Perforated slats
- Fenestrated slats with uniformly spaced openings of 5/8" x 3" (16 mm x 76 mm)
- Guides: 11-gauge roll-formed steel guides
- Cylinder lock
Aluminum, clear anodized
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
Documents
Rolling Counter Doors
Related products
Fire Rated Rolling Counter Door – 640
Model 640
This fire rated counter door features 22-gauge primed galvanized steel and is ideal for applications where safety is as important as style. These NFPA-80 compliant doors are labeled with either a 3 hour UL Class A label for masonry applications, or a 1-1/2 hour UL Class B label for non-masonry fire walls (a 3 hour non-masonry UL label is available upon request). Oversize UL labels are available for certain applications. A host of standard and optional features further improve performance of these doors beyond the norm in fire-rated applications. This fire-rated counter door has exposed components made of primed galvanized steel.
Fire-Rated Insulated Rolling Service Door – 635
Model 635
The FireKing® Insulated Fire-Rated Doors Model 635
Our insulated fire-rated rolling service door offers superior protection wherever a listed insulated fire door is required (max. width 24’; max. height 24’). The Model 635 insulated rolling steel door serves as a thermal barrier, ideal for applications which require separation due to climate control requirements. The insulation used in this door offers added energy efficiency (R-value of 4.5), sound transmission control (STC 21), and the mineral wool utilized in the slat insert meets the Smoke and Flame Index of 5. Common masonry and non-masonry mounted applications include: facilities with paint booths, file rooms, material storage locations, warehouses, shared walls between businesses, public record storage, and public buildings such as libraries. The Model 635 insulated fire door is available with UL (FM optional) labels for 1-1/2, 3, 4 and oversized doors. These doors feature a mechanical auto resettable hoist (non-motorized) that enables easy drop test and reset of the fire door in just seconds. Fusible links are mounted on both sides of the wall that separate to automatically close the door in case of fire. Additional safety and protection features are available, including: Fire Sentinel® time-delay release device, FireLite® vision lites, smoke detectors, horns and strobes.
Fire-Rated Rolling Service Door – 630
Model 630
FireKing® Model 630

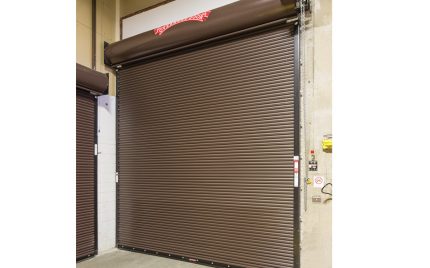

These fire-rated rolling steel doors offer superior protection wherever a listed fire door is required. Common applications include factories, warehouses, mills, distribution centers and parking garages. Customized fire doors are available for conveyor openings. These doors feature fusible links mounted on both sides of the wall that separate to automatically close the door. UL recommends a 165º F (74º C) fuse link for ambient conditions for 100º F (38º C) or less, or a 212º F (100º C) fuse link for ambient conditions over 100º F (38º C). Additional safety and protection features are available, including: Fire Sentinel® time-delay release device, FireLite® vision lites, smoke detectors, horns and strobes.
Integral Frame Rolling Counter Doors – 657
Model 657

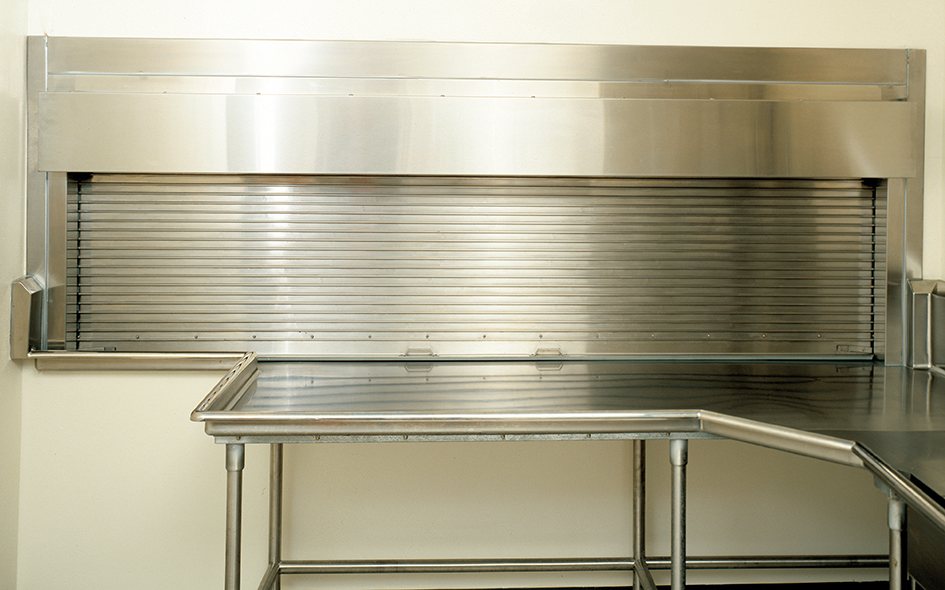

The integral frame / packaged counter door Model 657 combines an attractive finished appearance with the convenience of a factory-assembled unit. These non-rated doors feature a high-quality 16-gauge stainless steel frame, hood and fascia complemented by a 14-gauge stainless steel sill. Available to fit openings up to 12'5" (3785 mm) wide and 6'5” (1956 mm) high, these rolling counter doors have a variety of applications including food service areas.
Rolling Counter Doors – 650
Model 650

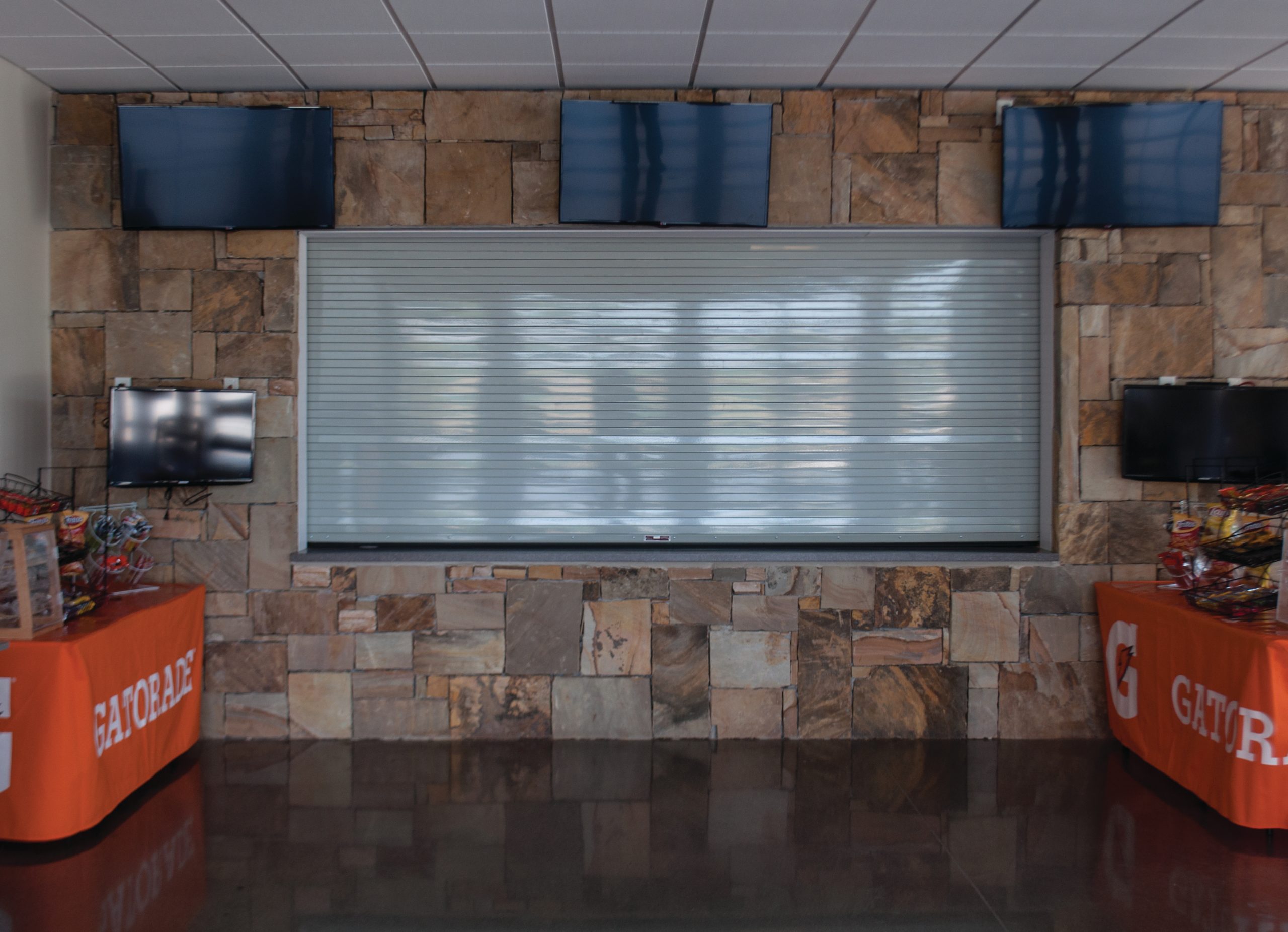

Distinguished by their painted galvanized steel slat curtain finish, Model 650 rolling counter doors are designed to fit openings to 20' wide and 9' high. These doors are ideal for a host of small-opening applications where security is important and a non-rated door is appropriate. Common applications include concession areas, cafeterias, pharmacies, parts-storage areas and ticket windows.
