Rolling Counter Doors – 651
Model 651

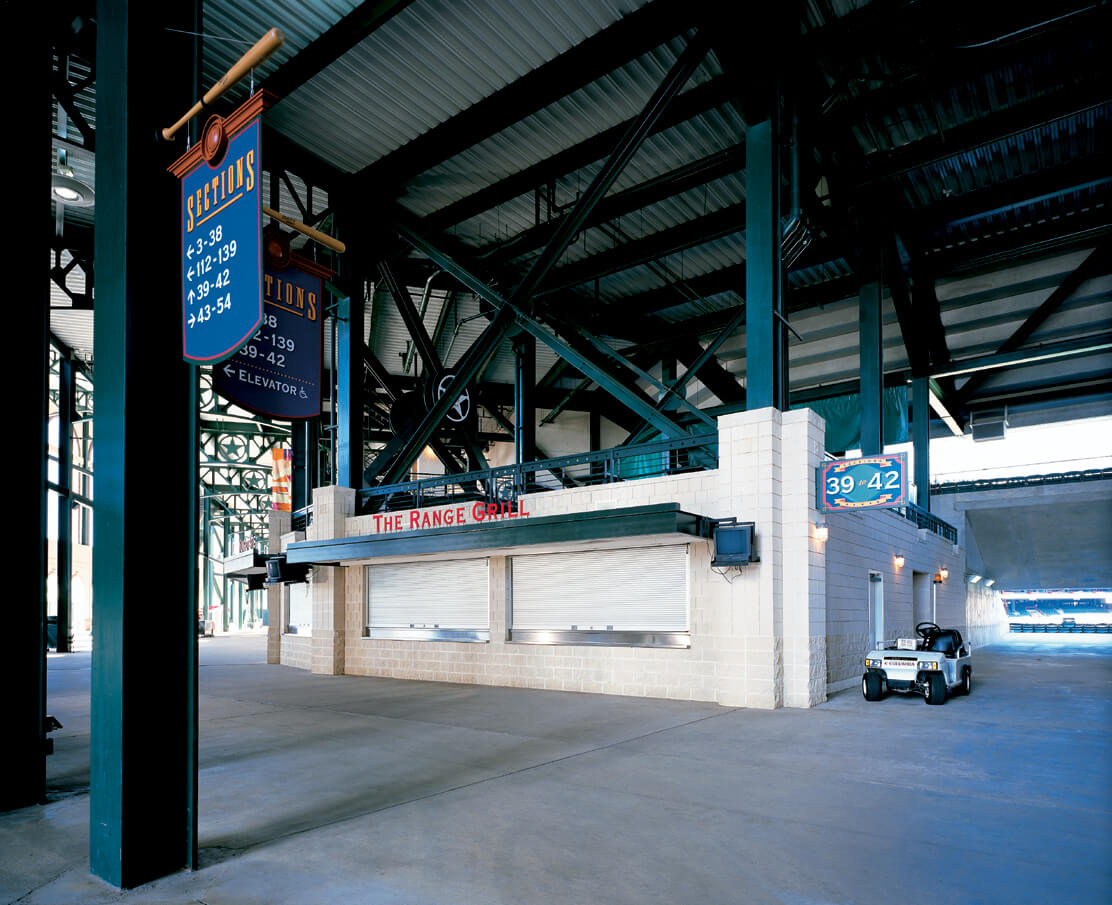

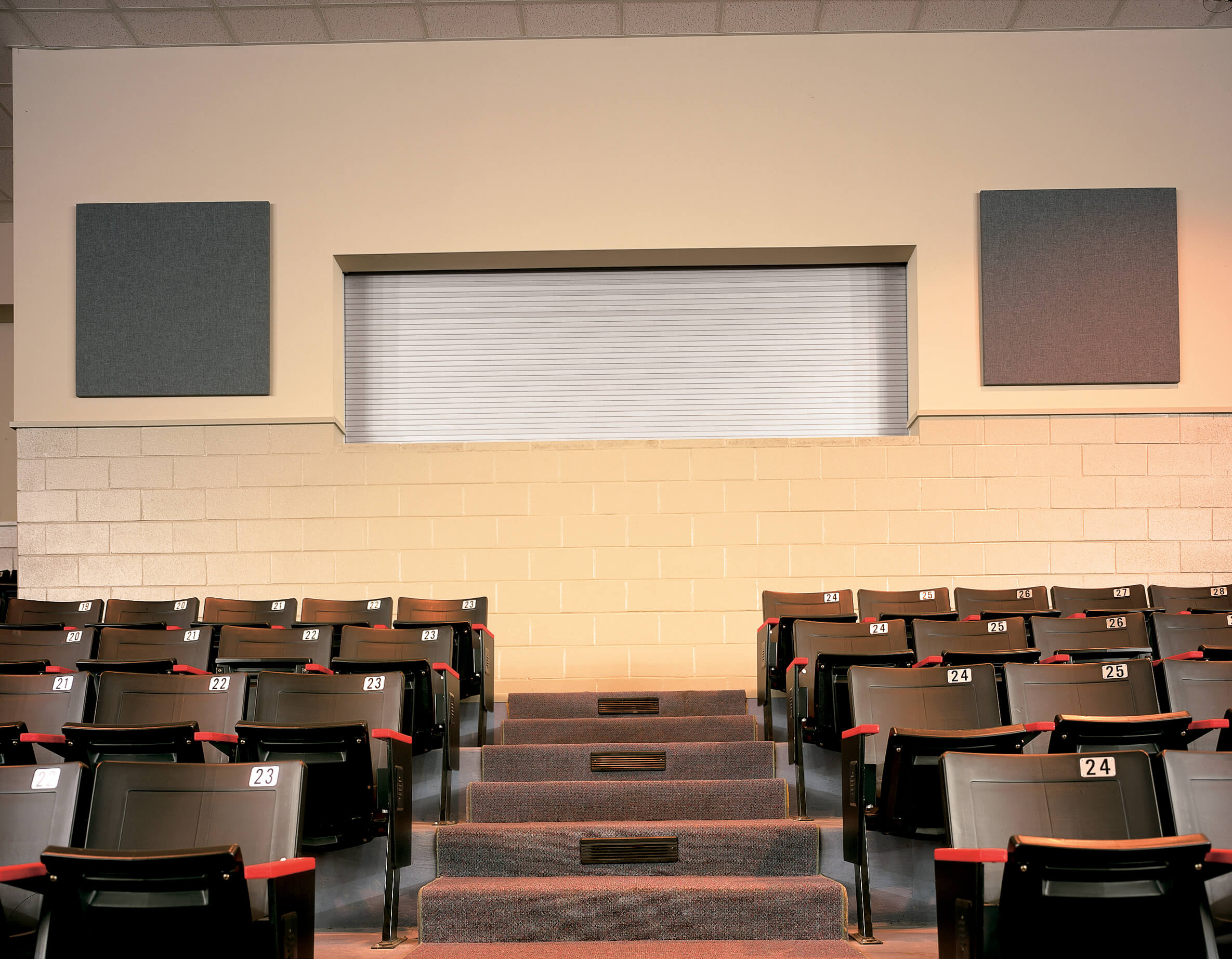

Distinguished by their No. 4 stainless steel curtain finish, Model 651 rolling counter doors are designed to fit openings to 20′ wide and 9′ high. These doors are ideal for a host of small-opening applications where security is important and non-rated door is appropriate. Common applications include concession areas, cafeterias, pharmacies, parts-storage areas and ticket windows.
Overview
| Standard Max Width | 20′ (6096 mm) |
| Standard Max Height | 9’0″ (2743 mm) |
| Curtain | Interlocking flat profile slats (F-158) with endlocks; galvanized steel |
| Hood | Stainless steel |
| Finish | No. 4 brushed steel |
| Brackets | Steel plate to support curtain, counterbalance and hood |
| Guides | Extruded aluminum |
| Counterbalance | Helical torsion springs housed in a steel tube or pipe barrel |
| Mounting | Face of wall, between jambs |
| Operation | Manual push up |
| Lock | Interior slide bolt |
| Warranty | 24 – month limited |
