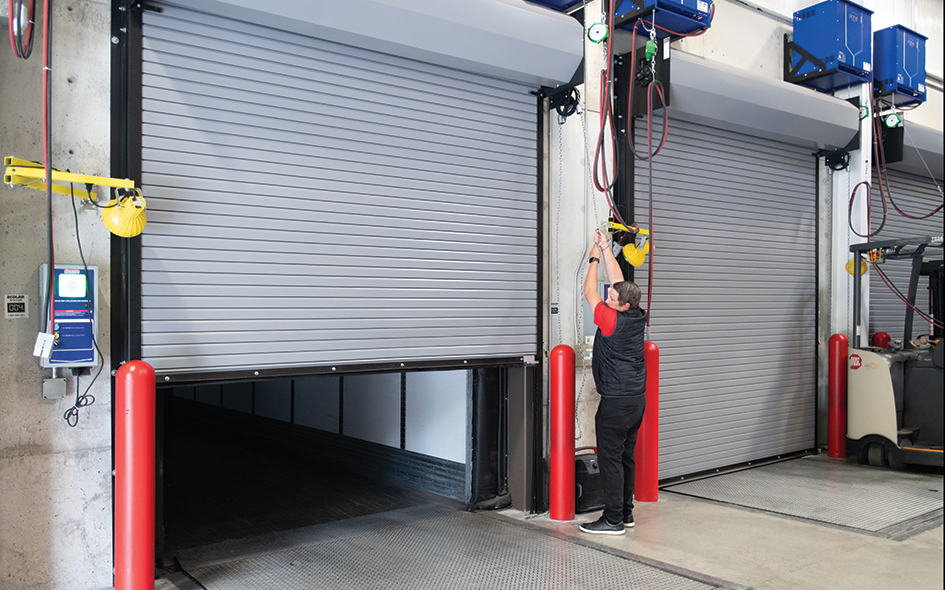

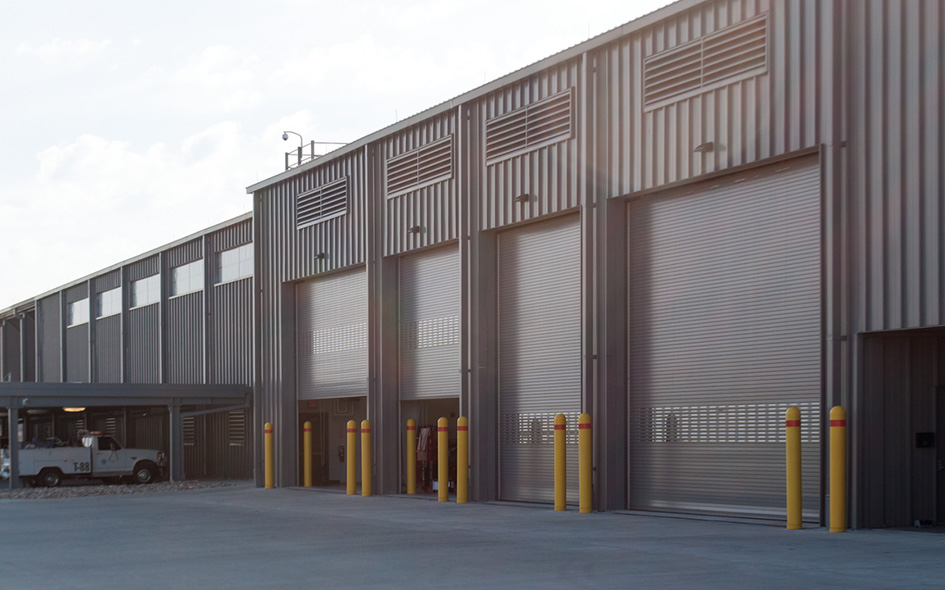

Rolling Steel Service Doors 625
Model 625
Stormtite™ Insulated Heavy-Duty Rolling Doors
The Model 625 rolling steel doors are an insulated, heavy-duty rolling service door that is an ideal choice for applications requiring a moderate level of thermal protection. Designed in sizes up to 30’4″ wide and 28’4″ high (9246 mm and 8636 mm), these doors are constructed with a CFC-free, foamed-in-place polyurethane insulation. Vinyl weatherstripping on the bottom bar, exterior curtain-side guide and hood baffle provides additional protection against air infiltration.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 30’4″ (9246 mm) |
| Standard Max Height | 28’4″ (8636 mm) |
| Curtain | 24 ga. galvanized steel front 24 ga. galvanized steel back |
| Insulation | Foamed-in-place, CFC-free polyurethane R-value 7.7 (1.35 W/m2) |
| Finish | Gray, tan, white or brown |
| Hood | 24 ga. galvanized steel |
| Sound Transmission Class rating | 21 |
| Wind load | 20 psf |
| Standard mounting | Face of wall |
| Operation | Chain hoist |
| Standard springs | 20,000 cycle |
| Weatherseals | Bottom, exterior curtain-side guide, interior hood baffle |
| Guides | Three structural steel angles PowderGuard® Weathered finish with black powder coat |
| Bottom bar | Primed steel with vinyl weatherseal |
| Lock | Padlockable chain keeper |
Warranty
- 24-month limited on door
- 3 year/20,000 cycles limited on door & operator system (when purchased together)
Options
Standard Exterior Color
White
Gray
Tan
Brown
Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
Door Options
- Electric operator (RHX®, RSX®, RMZ®) or crank operation
- Monitored Light Curtain (3′ or 6′ option)
- Bottom sensing edge
- Galvanized steel bottom bar angles and guides
- Insulated guides
- Sloping bottom bar
- Between-jambs mounting
- Stainless steel or aluminum slats
- High-usage package
- High-wind load (FBC, TDI, DADE)
- Weatherseal for interior side guide
- Lintel seal
- Cylinder lock
- Slide bolts
- Exhaust ports

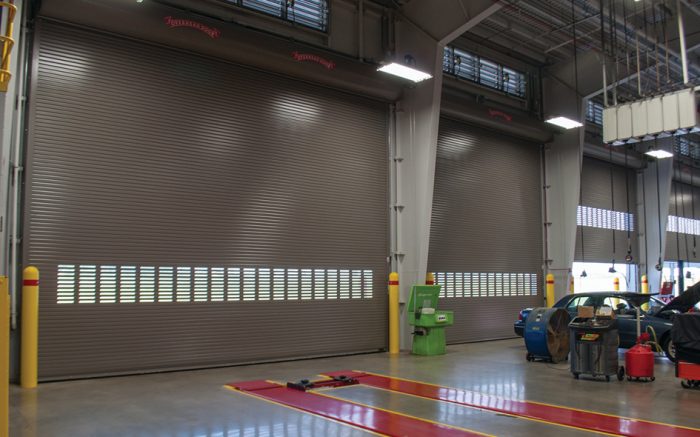

- Vision lites uniformly spaced 5/8″ x 3″ (16 mm x 76 mm) or 1″ x 10″ (25.4 mm x 254 mm)
- PowderGuard® Premium powder coat finish options are available in approximately 200 colors as well as custom matching to specification.
- PowderGuard® Zinc and PowderGuard® Weathered finishes
- Special application doors:
- Oversized doors to 1500 sq. ft. (139.4 sq. m)
- Combination doors with grilles and/or with full or partial standard, perforated or fenestrated slats
- Spark-resistant doors, craneway doors, pass doors
- Air infiltration package (meets IECC code requirements 2012 C402.4.3/2015 C402.5.2); includes guide cover and cap;dual brush guide seal; lintel seal; bottom astragal
Slat profile
Flat, insulated, type F-265
F-265i – available up to 30’4” (9246 mm) wide in 24 gauge. Other gauges available. Insulated slat curtain provides R-value of 7.7; U-value of 0.13, STC of 21. No perforation or fenestration available on F26i5. Vision lites available in 5/8″ x 3″ (16 mm x 76 mm) or 1”x10” (25.4 mm x 254 mm).
