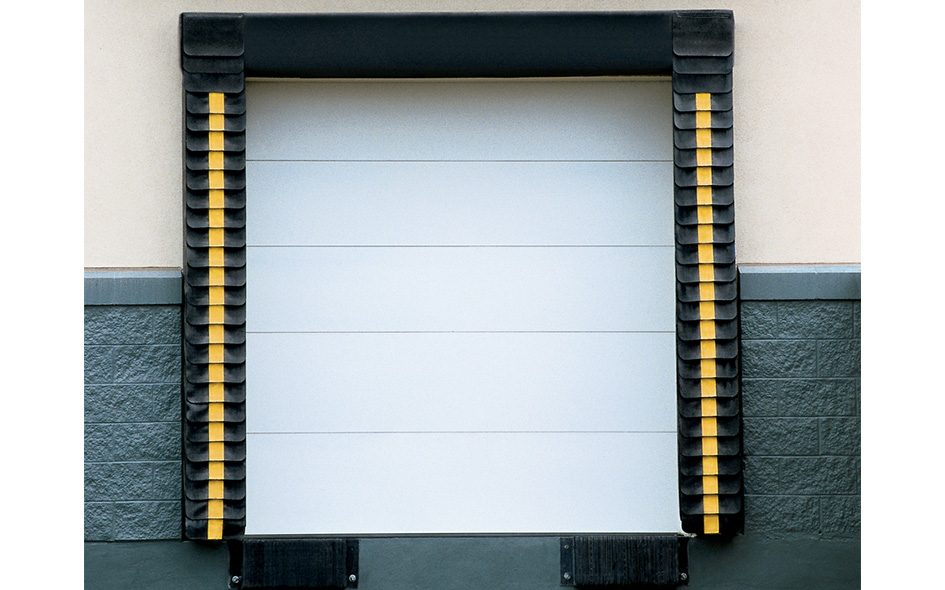

Sectional Steel Door Model 416
Model 416
Sectional steel door model 416 is strong, durable and versatile. Designed for heavy-duty commercial and industrial applications, this door is available in 16-gauge galvanized steel, in sizes up to 32’2″ (9804 mm) width and 21’1″ (6426 mm) in height. Available with an array of options, the Model 416 can be easily customized to meet any project requirement where an extra heavy-duty door is required.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 32’2″ (9804 mm) |
| Standard Max Height | 21’1″ (6426 mm) |
| Exterior steel | 16-gauge galvanized steel |
| Exterior surface | Flush |
| Finish | White baked-on polyester |
| End stiles | 16-gauge steel |
| Wind Load | FBC approved wind load options available |
| Center stiles | 16-gauge steel |
| Standard mounting | Angle mount |
| Standard track | 2″ (51 mm) |
| Standard springs | 10,000 cycle |
| Weather Stripping | Flexible PVC bottom with retainer |
| Operation | Manual pull rope and electric operator |
| Lock | Interior mounted slide lock |
Warranty
- 1-year limited
Options
Panel Options
Flush Panel
Ribbed Panel
White
Aluminum Sash Section (with DSB glazing)
- Chain Hoist or Electric Operator is recommended for doors above 10′ tall or more than 400 pounds
- Bottom sensing edge
- Full sash section with 1/8″ (3 mm) DSB, insulated; 1/8″ (3 mm) and 1/4″ (6 mm) acrylic
- Individual lites with 1/8″ (3 mm) DSB; 1/8″ (3 mm) and 1/4″ (6 mm) acrylic; 1/8″ (3 mm) and 1/4″ (6 mm) polycarbonate; 1/8″ (3 mm) and 1/4″ (6 mm) tempered; 1/4″ (6 mm) wired
- 3″ (76 mm) track
- Bracket mounting (not available on full vertical door tracks)
- Higher-cycle springs in 25k, 50k, 75k, 100k cycles
- Exhaust ports
- Jamb weather seals
- Bottom strips; including: looped PVC weatherstrips, flexible PVC astragal weatherstrips, and double-contact weatherstrips
- Reinforcing struts of roll-formed, galvanized steel
- Movable center posts for 2″ (51 mm) or 3″ (76 mm) tracks that roll away, with automatic safety catches that prevent door closure when posts are removed
- Tumbler keyed lock
- Window Glazing Options
- Impact Section Available
Documents
Sectional Steel Door
