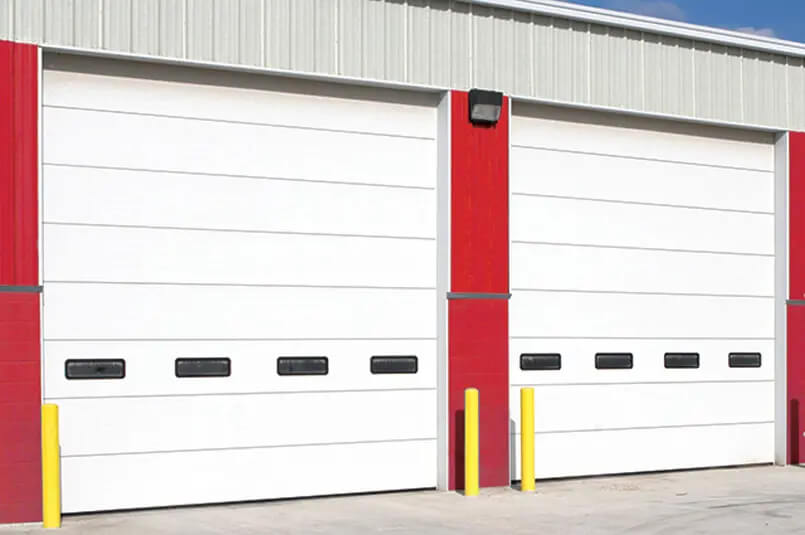

WindStorm™ Commercial Sectional Door – 525
Model 515
WindStorm™ Commercial Sectional Door Model 515 is engineered to withstand higher design pressures and is designed to meet local building codes for wind speed. constructed of steel and polyurethane insulation, this insulated wind load sectional door boasts an U-factor of .15 (R-value of 12.12).
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 22'2" |
| Standard Max Height | 20'1" |
| U-factor* | .12 |
| R-value** | 16.22 |
| Thermal break | Yes |
| Panel Thickness | 1 7/8" |
| Air infiltration | 0.07 cfm/ft2 at 15mph |
| Exterior Steel | 0.015" (0.35mm) |
| Exterior Surface | Embossed wood grain finish or microgroove textured |
| Standard Springs | 10,000 cycles |
| Sound Transmission | Class 20 |
| Wind Load | Minimum standard |
*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door uses a calculated door section R-value for our insulated doors.
Warranty
- 10 years against cracking, splitting or deterioration due to rust-through. 10 years delamination.
Options
Exterior Colors
White
Almond
Brown
Sandstone
Optional Wood Grain Finishes
Wood grain option available
Golden Oak
Mission Oak
Actual door color may vary slightly from the digital representation above. Color samples of the Wind Load Sectional Door are available by request through your local Overhead Door™ Distributor.
Short and Flush panel
Clear Short*
Cathedral Short
Cascade Short
Sherwood Short
Stockton Short*
Waterton Short
Williamsburg Short
Vertical Short panels
Clear Short*
Waterton Long
Clear Long*
Cathedral Short
Cascade Short
Cascade Long
Stockton Short*
Stockton Long (8-Lite)*
Stockbridge Long (4-Lite)*
Waterton Short
Long panel
Clear Long
Cascade Long
Cathedral Long
Stockbridge Long (4-Lite)*
Sherwood Long
Stockton Long (8-Lite)*
Arched Stockton
Waterton Long
Williamsburg Long
Microgroove panel
Clear Short
Williamsburg Short
Thermolite
Clear Long
Cathedral Short
Cascade Short
Cascade Long
Stockton Short
Stockton Long
Waterton Short
Waterton Long
*Artisan Wood Grain™ Finishes available with these windows only.
- Jamb Seal
- 3" Track
- High Cycle Springs - 25k, 50k, 100k
- Factory Glazed Windows
