Allura®
Model 653
Rolling Security Shutters

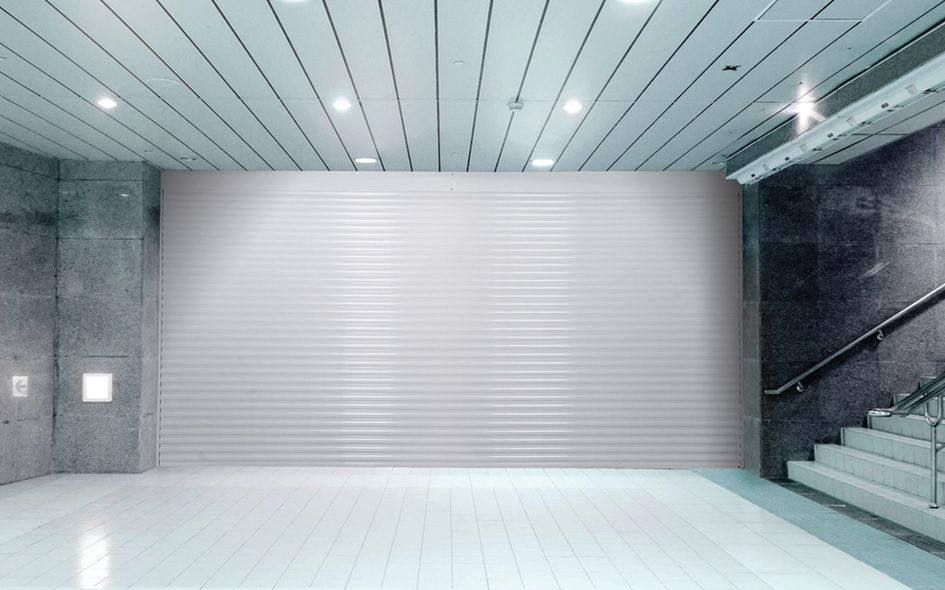

The Allura® Rolling Shutters are a next generation light-duty door solution that is versatile enough for specialty uses and has a space-saving design, making it perfect for installations with limited side room and headroom. Multiple perforation and fenestration options allow for many configurations with the right amount of light and air passage. Versatile and attractive, the Allura® shutter is perfect for security in high pedestrian traffic areas. Heavily visited areas such as retail stores, pharmacies and hospitals often need the security that a security shutter door offers as well as the flexibility in the aesthetic options to match the surrounding environment.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width∆ | 20′ (6096 mm) |
| Standard Max Height∆ | 14′ (4267 mm) |
| Mounting | Face-of-wall or between jambs mounting |
| Curtain | Interlocking extruded .05″ aluminum slats. Nickel plated, steel screws and end locks to retain curtain within guides and prevent lateral movement. Plastic roller retainers for curtains over 16′ wide. |
| Finishes | Silver powder coat to mimic look of clear anodized aluminum; Bronze powder coat to mimic look of bronze anodized, White or Almond powder coat |
| Counterbalance Assembly | Steel barrel housing counterbalance spring assembly |
| Guides | Extruded aluminum channels with continuous wear strips. Powder coated to match curtain |
| Fenestration/ perforation | Open fenestration 1″ x 1″ uniformly spaced openings, full curtain, 24% open area; Perforation full curtain, 22% open area; Partial fenestration 1″ x 1″ uniformly spaced openings; Partial perforation |
| Hood | Aluminum two piece square hood powder coated to match curtain |
| Bottom Bar | Aluminum compact bottom bar with vinyl bulb seal powder coated to match curtain |
| Brackets | Steel plates powder coated to match curtain |
| Operation | Manual push up |
| Locking | Slide bolts (interior; coil side); left and right slides |
∆ Maximum height and width are independent of each other and may vary based on slat profile, material and gauge.
Warranty
- Limited 2 year warranty for all parts, components and PowderGuard® Premium powder coat finish
Options
Standard Powder Coat Finish
White
Almond
Silver
Bronze
Actual door color may vary slightly from the digital representation above. Color samples are available by request through your local Overhead Door™ Distributor.

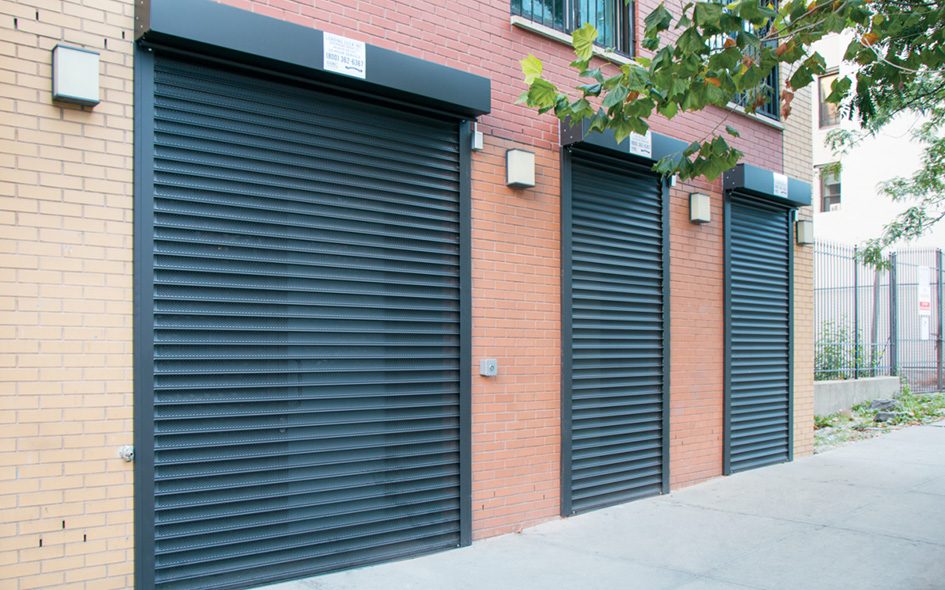

Powder Coat Color Options

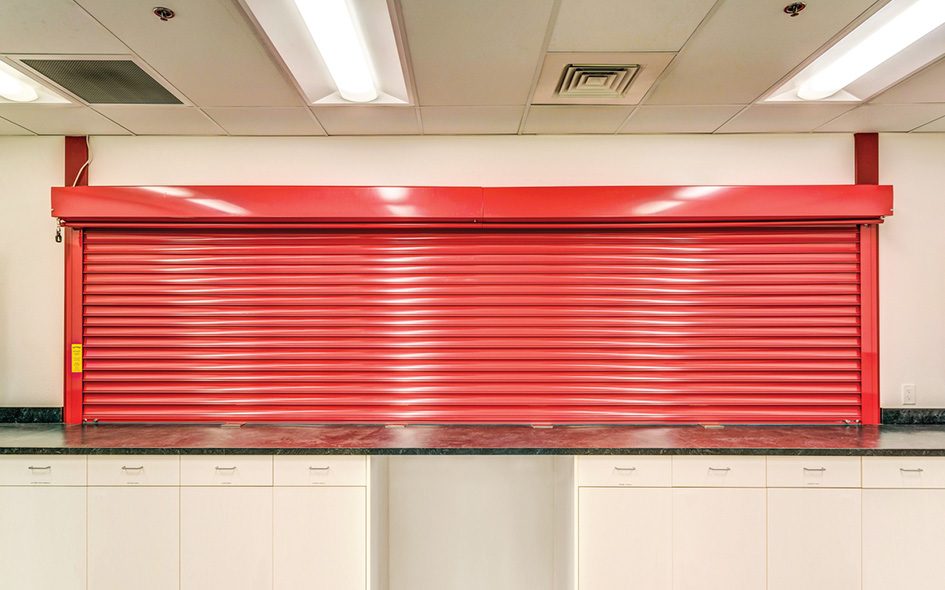

PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
- Step angle bottom bar attachment
- Interior crank or electric tube motor with crank for emergency egress manual override
- Slide bolts (exterior; non-coil side) suitable for use with padlocks; left and right slides*
- Cylinder lock*
- PowderGuard® Premium powder coat in approximately 200 colors or custom colors per architect specifications
* Requires interlock with tube motor operation

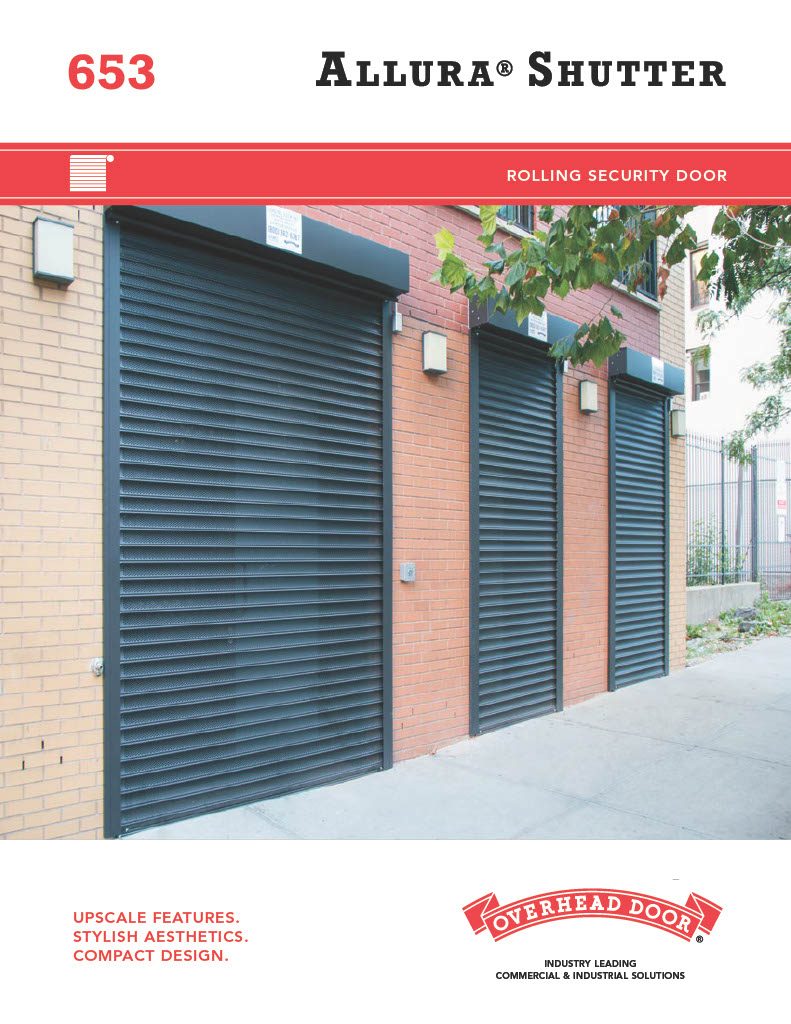

Brochures
