Edge of Dock Leveler – Mounting Options

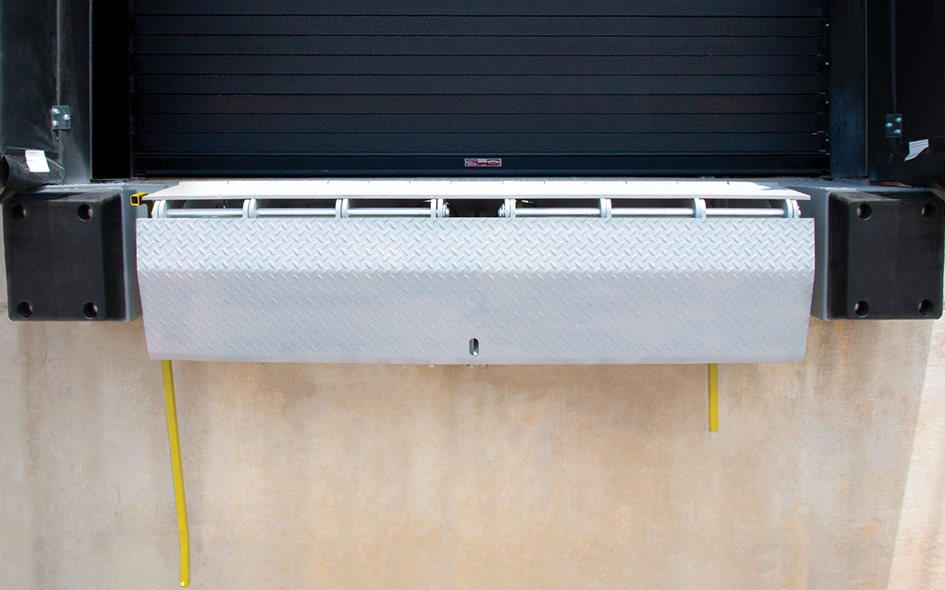

The Edge of Dock Leveler offers seamless functionality, engineered to optimize your dock’s performance. Paired with the right mounting option, it ensures smooth transitions, reinforced stability, and long-term reliability—no matter the working environment. From reducing downtime to improving safety, our mounting solutions elevate your operation’s efficiency.
Whether you need smooth building-to-truck transitions, stable vertical mounting, or easy concrete integration, we have a solution for you.
Features
Specifications
- Mounting Options - Approach Plates, Formed Angles, Wall Plates, Channel Embeds
- Material - Heavy-duty steel with powder coat finish
- Finish - Textured powder coat for enhanced traction and corrosion protection
- Environmental Compliance - U.S. EPA recommended eco-friendly coating process
- Color Options - Matches Edge of Dock Levelers
- Installation - Properly holed for anchoring, easy and fast setup
- Load Capacity - Rated for heavy-duty, high-traffic applications in demanding environments
Approach Plates
Smooth Transitions - Ideal for creating a continuous path between trailers and the building, enhancing safety and efficiency.
Protect workers and materials by reducing impact during loading/unloading.
| APPROACH PLATE WITH KINK | PART # |
|---|---|
| 12" x 120" | 851068.12120 |
| 18" x 120" | 851068.18120 |
| 24" x 120" | 851068.24120 |
| 12" x 106" | 851068.12106 |
| 18" x 106" | 851068.18106 |
| 24" x 106" | 851068.24106 |
| 12" x 100" | 851068.12100 |
| 18" x 100" | 851068.18100 |
| 24" x 100" | 851068.24100 |
| APPROACH PLATE WITH BEVEL | PART # |
|---|---|
| 12" x 120" | 851063.12120 |
| 18" x 120" | 851063.18120 |
| 24" x 120" | 851063.24120 |
| 12" x 106" | 851063.12106 |
| 18" x 106" | 851063.18106 |
| 24" x 106" | 851063.24106 |
| 12" x 100" | 851063.12100 |
| 18" x 100" | 851063.18100 |
| 24" x 100" | 851063.24100 |
Wall Plates
Secure Vertical Mounting - Best for installations where vertical mounting is needed for maximum steadiness.
Ensure superior alignment and long-lasting support.
| WALL PLATE | PART # |
|---|---|
| 13" x 100" | 851064.13100 |
| 13" x 106" | 851064.13106 |
| 13" x 120" | 851064.13120 |
| 16" x 100" | 851064.16100 |
| 16" x 106" | 851064.16106 |
| 16" x 120" | 851064.16120 |
Formed Angles
Enhanced Stability - Reinforced structural integrity perfect for areas with high traffic and heavy load demands.
Extend leveler performance in demanding environments and harsh conditions.
| FORMED ANGLE WITH KINK | PART # |
|---|---|
| 12" x 13" x 120" | 851067.1213 |
| 16" x 16" x 120" | 851067.1616 |
| 20" x 20" x 120" | 851067.2020 |
| 24" x 24" x 120" | 851067.2424 |
| FORMED ANGLE WITH BEVEL | PART # |
|---|---|
| 12" x 13" x 120" | 851062.1213 |
| 16" x 16" x 120" | 851062.1616 |
| 20" x 20" x 120" | 851062.2020 |
| 24" x 24" x 120" | 851062.2424 |
Channel Embeds
Seamless Concrete Integration - Ideal for new builds or dock retrofits for a durable foundation.
Integrate directly into concrete surfaces for a stable, secure dock system.
| CHANNEL EMBED | PART # |
|---|---|
| 8" x 100" | 851061.08100 |
| 8" x 106" | 851061.08106 |
| 8" x 120" | 851061.08120 |
| 10" x 100" | 851061.10100 |
| 10" x 106" | 851061.10106 |
| 10" x 120" | 851061.10120 |
