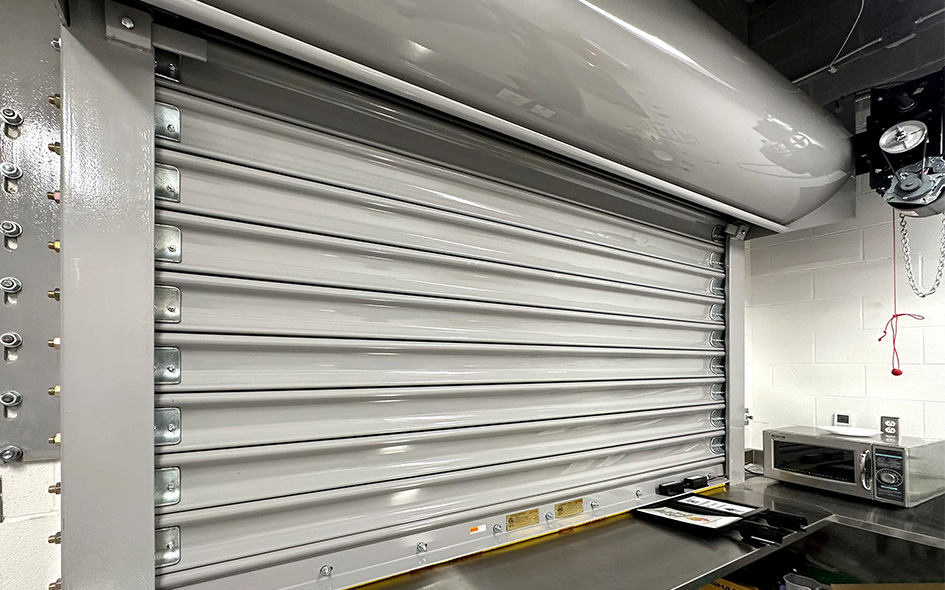

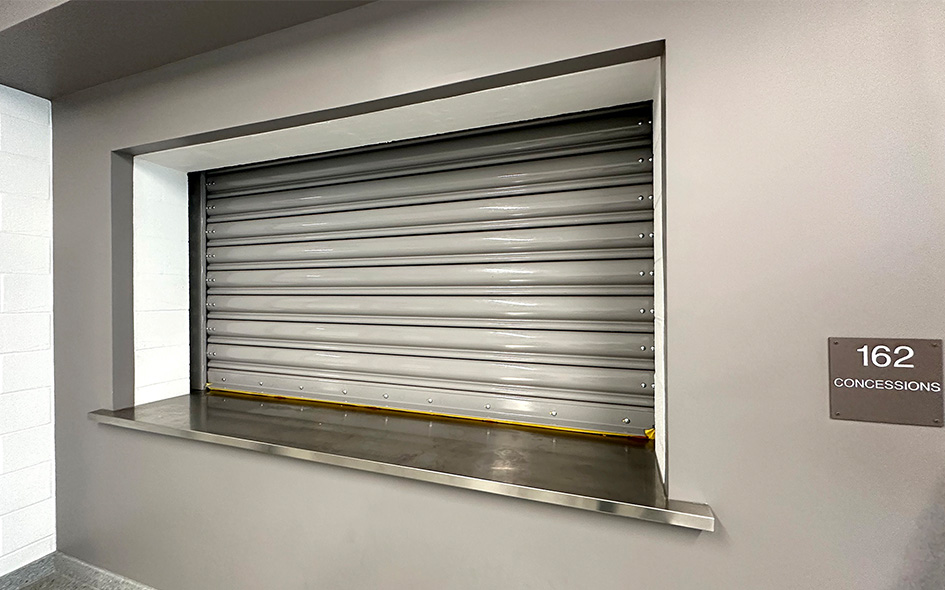

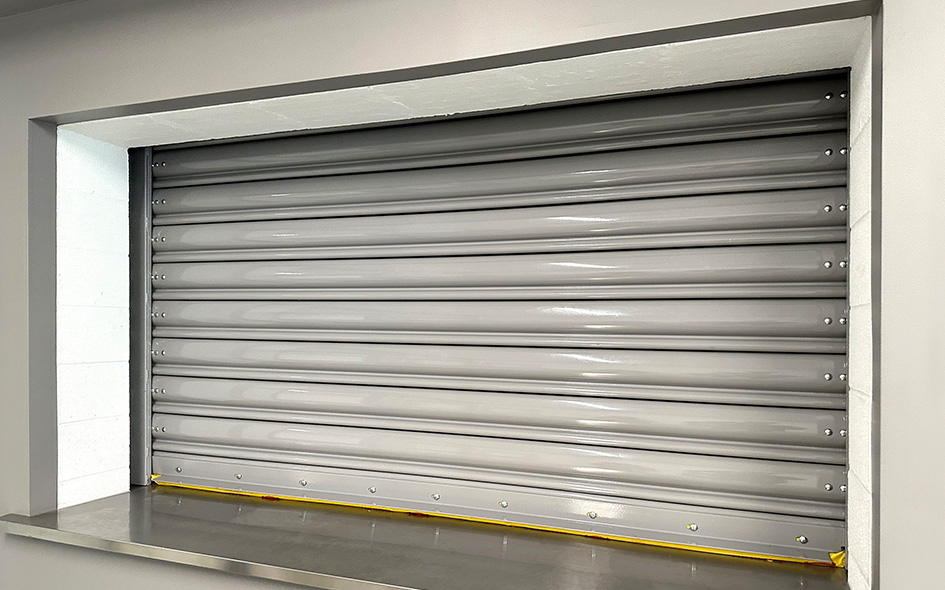

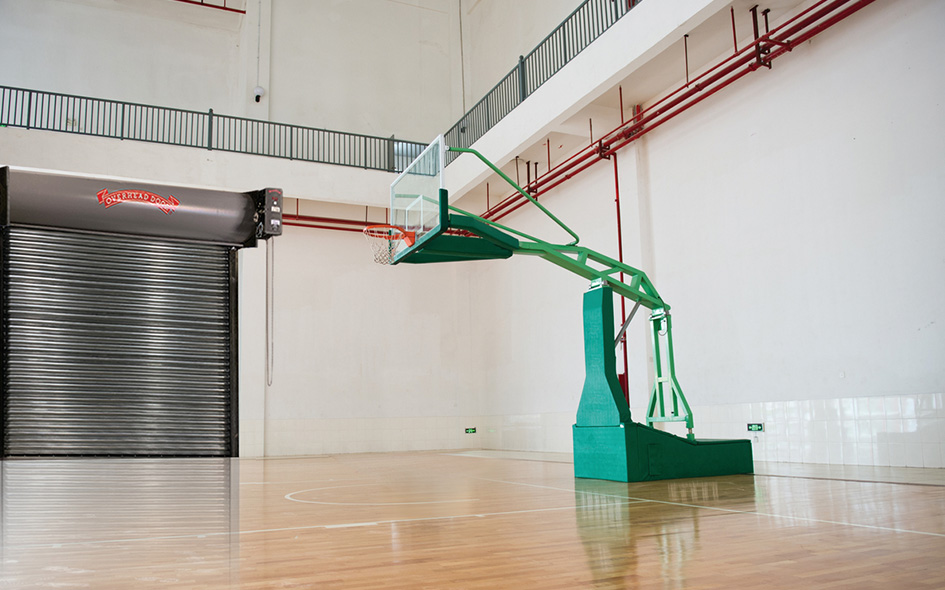

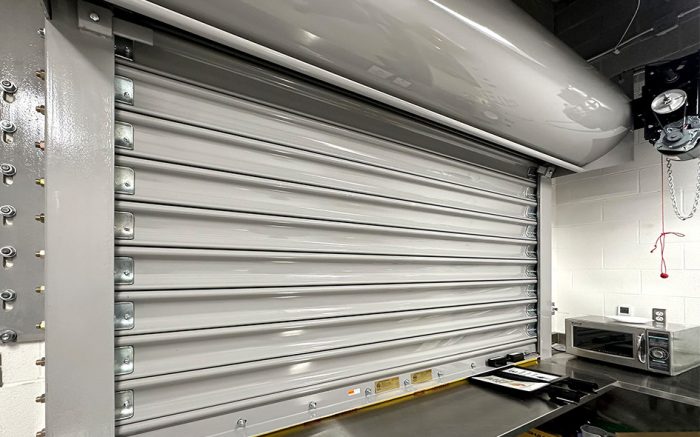

EverGuard™ Fire Rated Shelter Door – 610FR
Model 610FR
Rolling Steel Shelter Door Model 610FR bears the Warnock Hersey (WH) mark for fire safety which indicates compliance to UL 10B, NFPA 252 and CAN/ULC S104. Model 610FR is fire rated for up to 4 hours. This fire rated shelter door combines durability and safety where it’s needed the most.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 11′ |
| Standard Max Height | 11′ |
| Curtain | 12-gauge galvanized steel |
| Finish | Gray |
| Hood | 24-gauge galvanized steel |
| Standard mounting | Face-of-wall |
| Operation | RSX® service door operator |
| Standard Spring | 10,000 cycle |
| Guides | Three steel angles |
| Bottom Bar | Double angle steel |
| Warnock Hersey (WH) | Fire rated up to 4 hours |
| Obstruction detection | Wireless reversing edge |
| Wind load | Tested: +/- 300 psf (ICC-500/FEMA 361) Tornado: +/- 250 psf (ICC-500/FEMA 361) Hurricane: +/- 200 psf (ICC-500/FEMA 361) |
| Impact rated | Wireless reversing edge |
| Slat Profile |
C-600 slat – a curved slat profile that measures 6″(152 mm) in height and 1 3/8″ in depth. Slats can be replaced quickly, minimizing downtime.
|
Warranty
- 3-Year Limited; 10K Cycle limited on door system
Options
Door Options
- Galvanized steel bottom bar and angles
- PowerGuard® Weathered finishes to provide a thicker, more scratch resistant coat for added protection
- Mount Type; Bench, Top or Wall Mount
Actuators
- Photo eyes for additional obstruction detection
- Motion Detector
- Loop Detector
- Horns and strobes
- Key Switch
- Pull Station
- Additional Push Button Stations
- Transmitter
Standard Exterior Color
Gray
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
