Rolling Sheet Door – 780CD
Model 780CD
ProStar™ Model 780CD

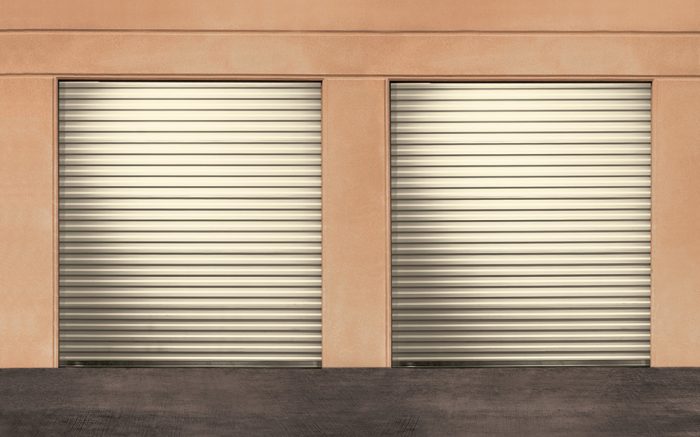

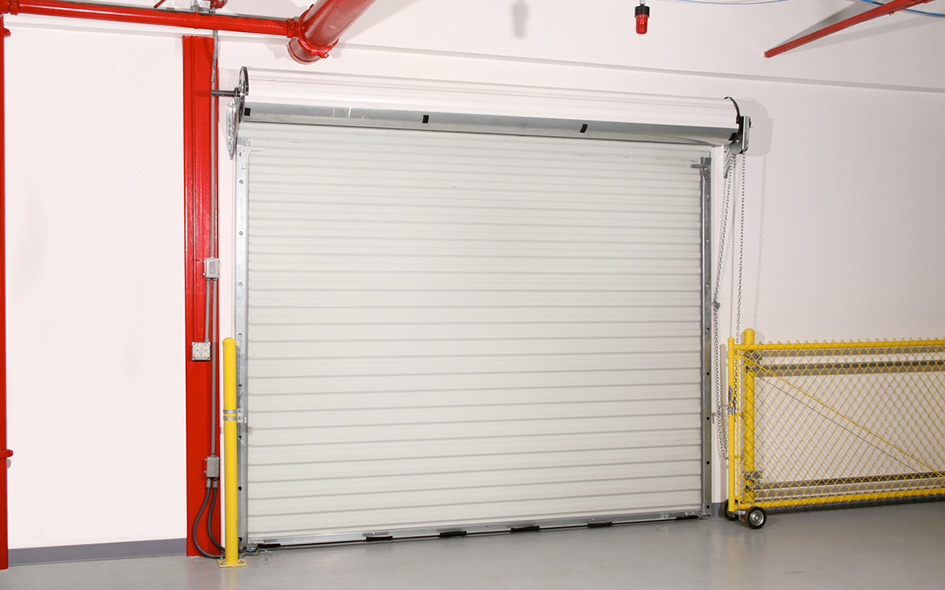

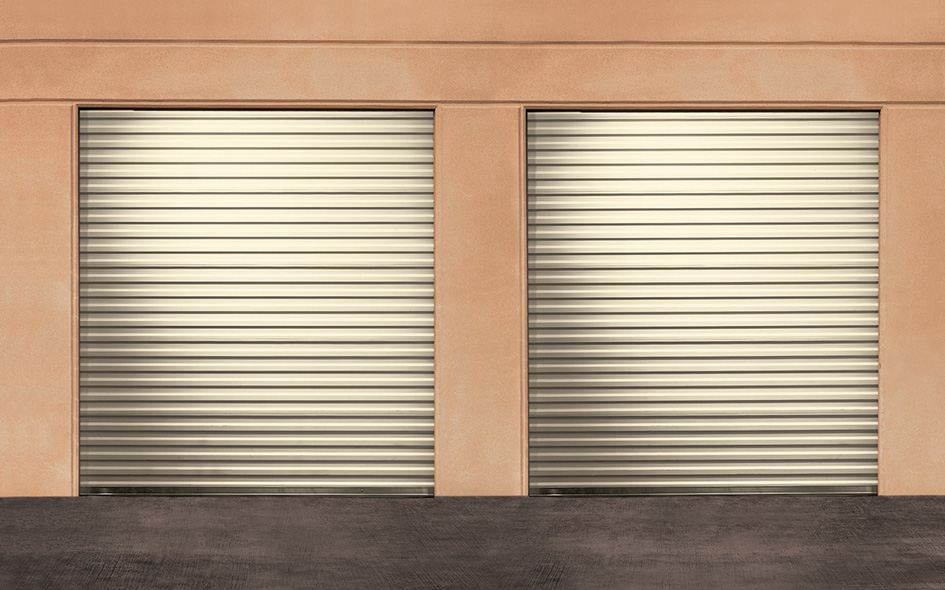

The Model 780CD rolling sheet door is designed to fit openings up to 16′ by 16′ (4877 mm by 4877 mm) with ease, versatility, and good looks. The Model 780CD is designed for heavy-usage environments where a high wind load-rated door is not required. Like the Model 790CW, this heavy-duty door is fabricated of high strength, 26-gauge galvanized steel curtain sections for superior performance. It also features our innovative quick-connect components that allow quick and easy assembly without sacrificing stability or durability. Stepped counterbalance rings and a unique curtain profile minimize nesting. The universal guide design further simplifies installation by allowing mounting directly to concrete, masonry, steel or wood jambs. Additional standard features such as dual rub strips on both edges of guide and a flexible webbing on both front edges of the curtain to minimize nesting ensure that the Model 780CD will provide long-lasting, lower-cost performance for years to come.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 16' (4877 mm) |
| Standard Max Height | 16' (4877 mm) |
| Curtain | 26-gauge, roll-formed galvanized steel sections, interlocked and seamed to form full door height |
| Curtain material | High strength steel |
| Curtain rub strips | Flexible webbing on both front edges |
| Counterbalance Assembly | 12" (305 mm), steel stepped rings to minimize headroom and enhance door operation |
| Universal guides | 18-gauge, roll-formed galvanized steel with pre-punched through-hole design for mounting to concrete, masonry, steel or wood jambs |
| Headplate | 11-gauge steel |
| Bottom bar | Extruded aluminum reinforced with steel, roll-formed angles |
| Quick-connect bottom bar stops | 12-gauge galvanized steel |
| Bottom seal | Bulb-type, astragal seal |
| Guide rub strips | Polypropylene strips on both edges |
| Standard springs | 3 3/8" (86 mm) torsion springs |
| Operation | Manual or non-handed reduced drive chain hoist (depending on door size) with quick-connect components |
| Lock | Interior bottom bar slide bolt set (left and right-handed) |
| Exterior/interior finish | Paint finish in choice of 14 standard colors: white, glossy white, silhouette gray, buckskin, desert tan, garnet red, walnut brown, polar blue, royal blue, teal, dark teal, forest green, bronze and matte black. |
Warranty
- 1 year
Options
White
Teal
Dark Teal
Forest Green
Bronze
Matte Black
Glossy White
Silhouette Gray
Buckskin
Desert Tan
Garnet Red
Walnut Brown
Polar Blue
Royal Blue
Door Options
- Electric operator (Model RMX®)
- Chain hoist with reduced drive, non-handed quick-connect components (standard on some Model 780CD doors, depending upon size)
- Exterior curtain slide lock (accepts cylinder lock or 2 padlocks*) (right or left-handed)
- Jamb extension brackets
- Header draft seal
- RLDTM Light Duty Jackshaft Operator
- RMZ Hoist - Medium-Duty Hoist Commercial Operator
*Cylinder locks and padlocks not provided
