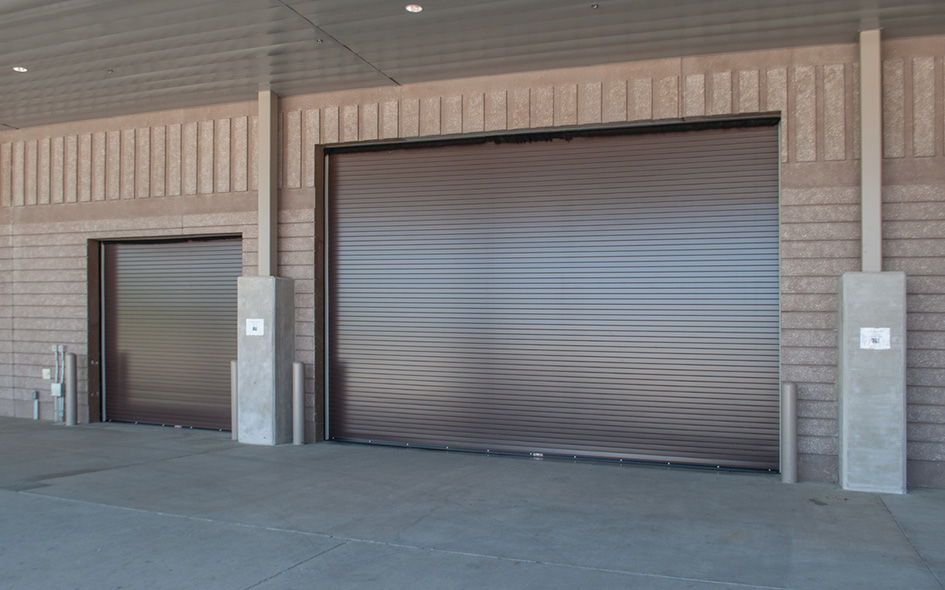

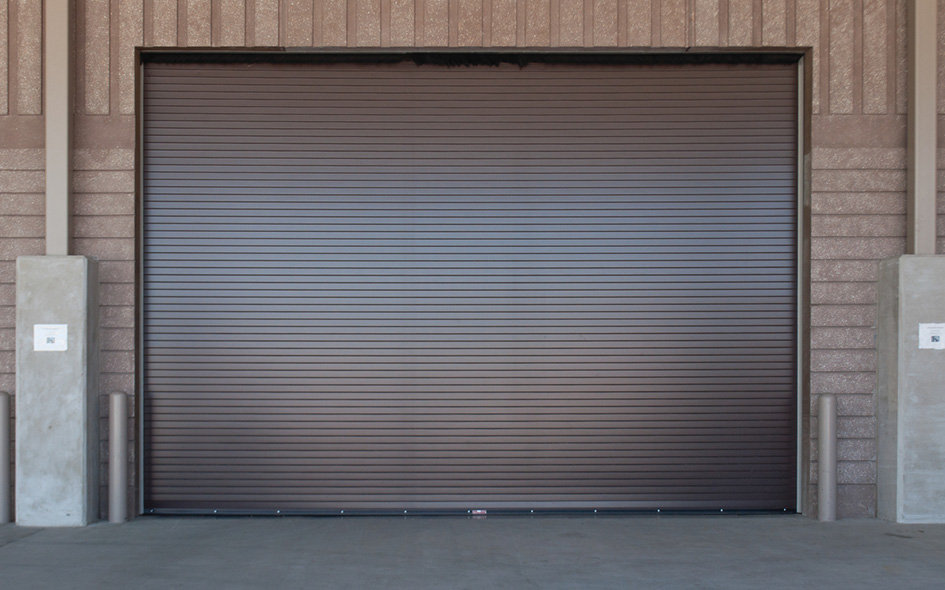

Rolling Steel Service Door – EverServe® 620S
Model 620S
EverServe® Model 620S
This heavy duty Stormtite™ springless service door is best suited for exterior applications that are exposed to harsh weather. The Model 620S provides security, reliability, ease of serviceability and advanced weather protection. The perimeter seals included in this design help protect against extreme weather conditions.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | up to 30' (9246 mm) depending on gauge and slat type |
| Standard Max Height | up to 20' (6096 mm) depending on gauge and slat type |
| Mounting | Interior or exterior face of wall |
| Control panel | Electronic controller with microprocessor self-diagnostics. Digital readout indicates door action, alarm conditions, and fault conditions. Time delay self-close timer and non-resettable cycle counter are included. One open/close/stop push button station integrated into the control panel. The enclosure is IP54 rated (NEMA 3 equivalent). |
| Curtain | Galvanized steel interlocking roll-formed slats, end locks attached to prevent lateral movement. Flat Profile type F-265 for doors up to 18'4" wide - 22 gauge; From 18'5" to 25'4" - 20 gauge; From 25'5" to 30'0" - 18 gauge |
| Curtain finish | Gray, Tan, White or Brown polyester topcoat |
| Bottom bar | Two PowderGuard® Premium powder-coated black angles (min. thickness 3/16”) with weatherstrip |
| Hood | 24-gauge galvanized steel primed; motor and end cover provided |
| Brackets | Min. ¼” hot rolled primed, PowderGuard® Premium powder-coated black steel |
| Guides | Three structural steel angles PowderGuard® Premium powder-coated black; With high cycle UHMW wear strip |
| Stormtite™ perimeter seal system | Exterior guide seal, interior hood baffle, bottom astragal |
| Door roll | Direct driven, springless roll with integrated shafts; self-aligning grease-able sealed bearings; the door does not require counterbalance device |
| Safety devices | The built-in brake mechanism provides additional peace-of-mind against uncontrolled curtain travel. Photoelectric safety sensors with guards - provide obstruction monitoring during door operation to help prevent injury and damage |
| Operation | Direct drive integrated gear/motor/brake assembly; Drive assembly and limit sensors are factory pre-assembled; Manual hand chain for a power outage. Horsepower appropriate to door size/weight; 230V AC 3-phase motor |
| Actuator | Single open/close/stop push button station incorporated into the control panel |
| Wind load | 20 psf |
Warranty
- 36 month limited warranty coverage on the door system
Options
Standard Exterior Color
Brown
White
Gray
Tan
Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
Door Options
- Motor options: 208V AC 1PH†, 220V AC 1PH, 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH†, 575V AC 3PH†
(†requires stand-alone mounted transformer) - Flat profile type F-265 for doors up to 30’ wide. Available in: 20, 18 gauge galvanized steel; 22, 20 gauge stainless steel; 16 gauge (.050”) aluminum*
- Bottom bar also available in: galvanized steel, stainless steel and aluminum
- Guide options include galvanized steel, powder coated steel
- Hood available in powder coat, stainless steel and aluminum; sloped hood also available
- Brackets also available in powder coat, galvanized steel
- IP65 (NEMA 4/4X equivalent) control panel
- Sensing edge for improved safety
- Additional set of photoelectric sensors
- Optional push buttons, loop detectors, radio control, motion detectors or any combination thereof available for door operation/control
- PowderGuard® Premium powder coat and PowderGuard® Max hardened powder coat available in approximately 200 colors as well as colormatching to specification
- PowderGuard® Textured Finish: Industrial textured powder coat provides a thicker, more scratch resistant coat for added product protection on guides, bottom bar and head plate
- Uniformly spaced glazed acrylic vision lites available in 3” x 5/8” or 10” x 1”
- High wind load options available
*Consult factory for specific slat profile and gauge width limits.
Documents

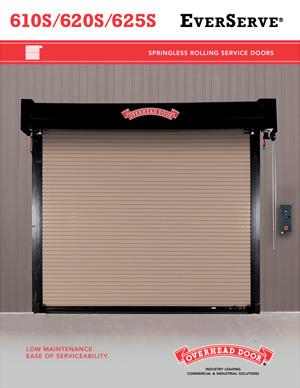

Springless Rolling Service Door EverServe®
