Side Folding Full Enclosure Security Grilles 679
Model 679

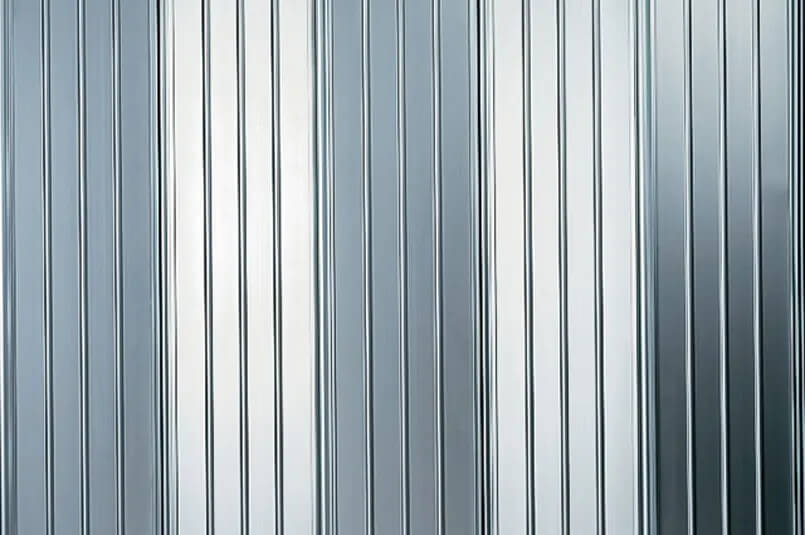

Side Folding Full Enclosure Security Grilles Model 679 features a full-height, solid aluminum panel for maximum security. 6-5/16″ standard-width panels constructed of full-height, solid aluminum that slides into aluminum hinges. Visibility: 0% of 6 1/8″ (156 mm) viewable area
Overview
Construction
| Product Specifications | |
|---|---|
| Operation | Manual |
| Curtain Frame | Truss-like aluminum top and bottom plates; 1/8” (3 mm) thick |
| Panel Width | 7” (178 mm) standard body; 4” (102 mm) slim body |
| Finish | Aluminum clear anodized |
| Trolley assembly | 1 1/8” (29 mm); vertical adjustment 1" (25 mm) up/down without curtain removal |
| Track detail | Top-mounted, heavy-duty aluminum sections Height: 1 5/8" (41 mm) Width: 1 3/8" (35 mm) |
| Track Curves and Radius | 90°: Standard body: 14” (356 mm) radius; Slim body: 10” (254 mm) radius 120°, 135° and 150°; Standard and Slim body: 10” (254 mm) radius |
| Post types | Lead post Hook lock and wall channel; bi-part; top and bottom shoot bolts Intermediate post Bottom shoot bolt Trailing end post Traveling; fixed; hook lock and wall jamb; top and bottom shoot bolts; carrier |
| Locking mechanisms | Lead post Concealed cylinder-operated hook lock accessible from interior and exterior Intermediate post Concealed cylinder-operated shoot bolt accessible from one side only Trailing end post Attached 10’ max. (3048 mm) protection plate self-locking into a steel V-Stop |
Warranty
- 24 month OEM limited
Options
Door Options
- Custom radii and curves
- Emergency Egress Door
Model 679
Standard Body

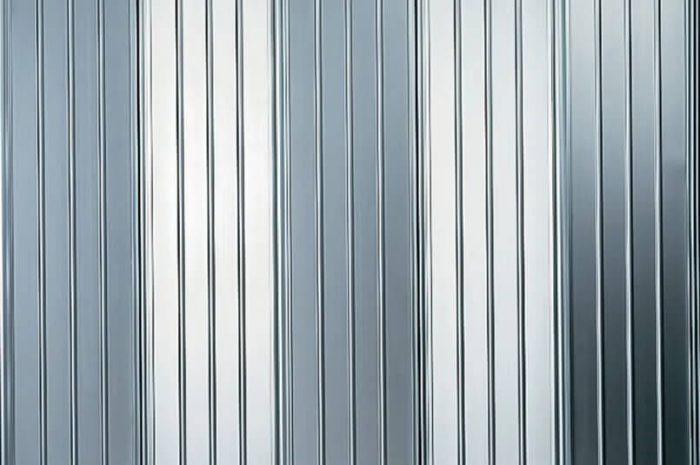

Curtain: 7” (178 mm) standard width, 0.078" (2 mm) thick solid aluminum that fit into aluminum hinges. Panels are framed by min. 4" (102 mm) high aluminum bottom plates and top plates.
Visibility: 0% of 6 1/8" (156 mm) viewable area
Model 679
Slim Body
Curtain:4" (102 mm) standard width, 0.07" (1.78 mm) thick solid aluminum that fit into aluminum hinges. Panels are framed by min. 4" (102 mm) high aluminum bottom plates and top plates.
Visibility: 0% of 3 1/2" (89 mm) viewable area
