Aluminum Glass Door – 522
Model 522

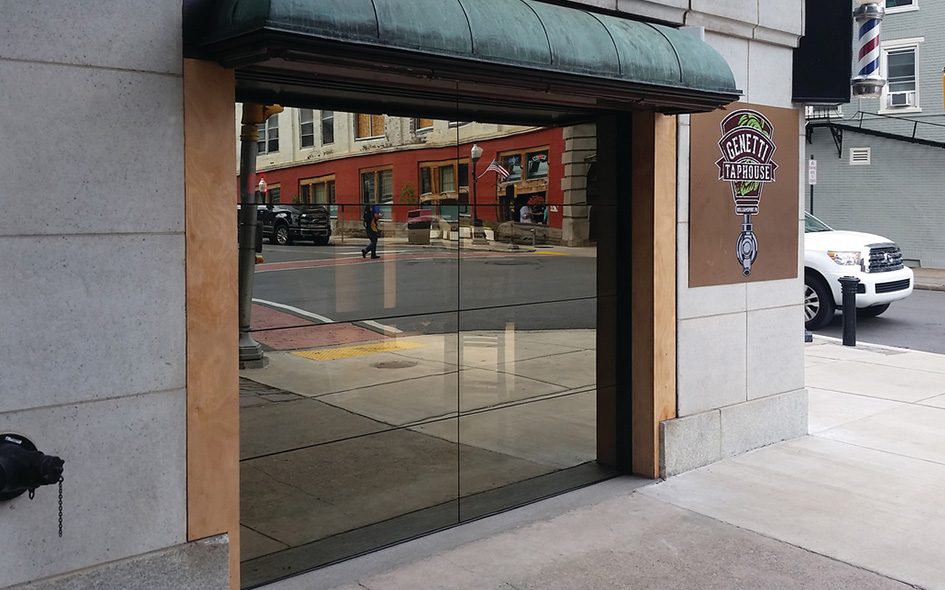

Aluminum Glass Door model 522 is designed in sizes up to 18’ 2” (5486 mm) wide and 14’ 1” (4318 mm) high. This aluminum full-view door, featuring a frameless design, is ideal for restaurants, auto dealerships and any application where the door needs to integrate seamlessly with the aesthetics of the building. Available with five glass options.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 18’2″ (5486 mm) |
| Standard Max Height | 14’1″ (4318 mm) |
| Section thickness | 1 3/8″ |
| Material | 6063-T6 aluminum |
| Standard finish | White, Black or Bronze Powder Coat |
| Center stile width | 3″ |
| End stile width | 3 1/2″ |
| Top rail width | 3 1/2″ |
| Top intermediate rail width | 1 5/8″ |
| Bottom intermediate rail width | 1 3/8″ |
| Bottom rail width | 3 1/2″ |
| Weatherseals | Bottom, flexible PVC |
| Standard springs | 10,000 cycle |
| Track | Provide track as recommended by manufacturer to suit suit loading required and clearance available |
| Mounting | Angle |
| Operation | Manual pull rope |
| Hinges and fixtures | Galvanized steel |
| Lock | Galvanized, interior-mounted single unit |
Warranty
- 1-year limited
Options
Powder Coat Finishes
White
Black
Bronze
Anodized Finishes
Black
Bronze
Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Please contact your local Overhead Door™ Distributor for actual color samples to match with your home or business.
Actual door colors may vary slightly from the website images due to fluctuations in paint or anodizing process.
Glass Options
Opaque White
Opaque Black
Mirrored Gray

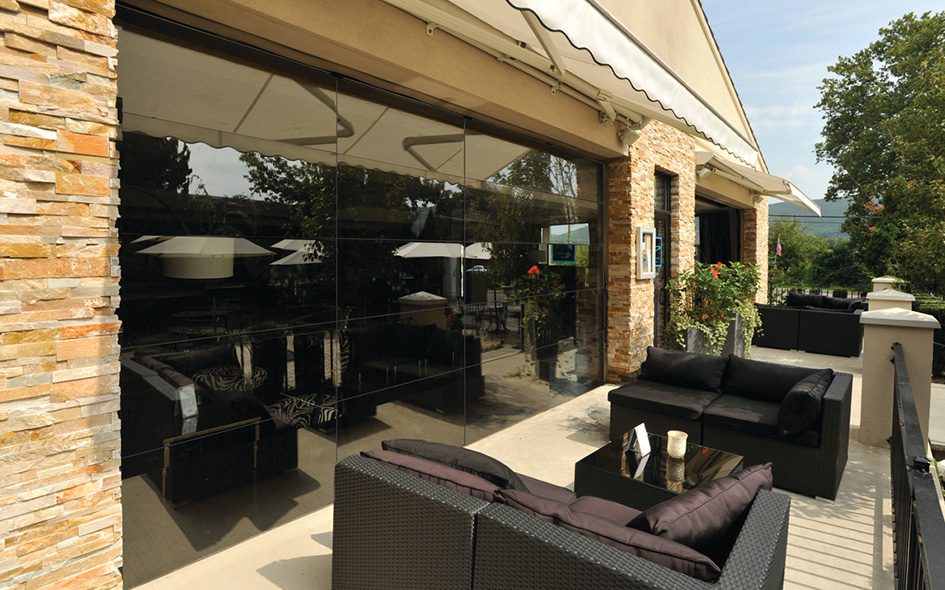

Mirrored Bronze
Translucent Black
Aluminum and Glass Pairing
| Aluminum Option | Glass Option |
|---|---|
| White Powder Coat | Opaque White |
| Black Powder Coat / Bronze Powder Coat / Black Anodized / Bronze Anodized | Opaque Black / Mirrored Gray / Mirrored Bronze / Translucent Black |
Each door is unique and built to order, therefore a slight deviation in glass alignment is possible. These doors may become hot to the touch in sustained hot weather.
- Springs: 25,000, 50,000, 75,000 or 100,000 cycles
- Weather stripping jamb and header seals
- White or Black powder coat track

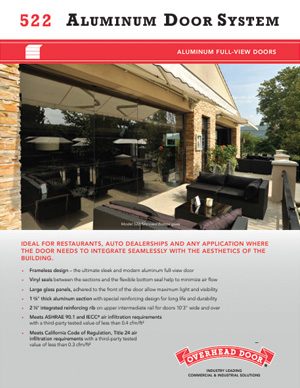

Brochures
Documents
Aluminum Glass Door
