Red Pin Steel Dock Board (C)
- Red Pin Steel Dock Board (C)
The Red Pin Steel Dock Board is specifically engineered for challenging trailer-to-dock positions, ensuring secure and stable loading conditions. Its dual-pin locking system enhances safety, making it an ideal solution for container and park-out applications.
Description
Description
Specifications:
- Heavy-Duty Construction: All-welded steel for maximum durability
- Enhanced Stability: Dual-pin locking system for secure placement
- High Load Capacity: Supports 15,000 to 40,000 pounds
- Versatile Sizing: Available in widths from 60″ to 84″ and lengths from 48″ to 96″
- Optimized Design: Full-length side pockets provide additional reinforcement
Related products
“HP” SERIES STANDARD DUTY HYDRAULIC
Pit Style Hydraulic Dock Leveler
The HP Series hydraulic dock leveler is designed with dependability and toughness in mind for your medium to lighter duty applications. The “HP” offers the same easy push button smooth, consistent operation as the heavy duty H series and the same built in safety, durability and toughness. Easy clean out and servicing are features of all McGuire levelers. Your budget, your safety and trouble free service are always number one with McGuire. They are also most often mounted in a pre-formed pit at the dock commonly used to reduce the grade between the dock floor and the trailer bed. Various sizes and capacities allow for a large amount of flexibility. Hydraulic levelers have added safety features and save time in operation and maintenance.
This series comes in 6’, 6’6” & 7’ standard widths and 6’, 8’ & 10’ standard lengths with 12’ and other lengths available. Standard capacities are 25K, 30K, 35K and 40K CIR (Comparative Industry Rating).

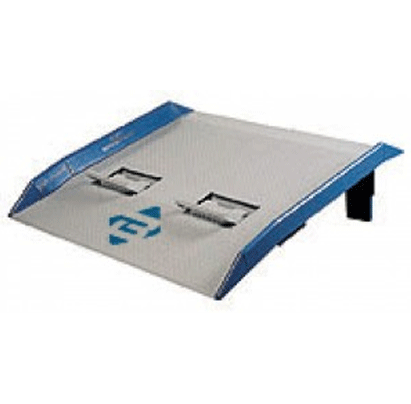

Aluminum Dock Board
