VSH Vertical Storing Leveler
Vertical Storing Hydraulic Dock Leveler

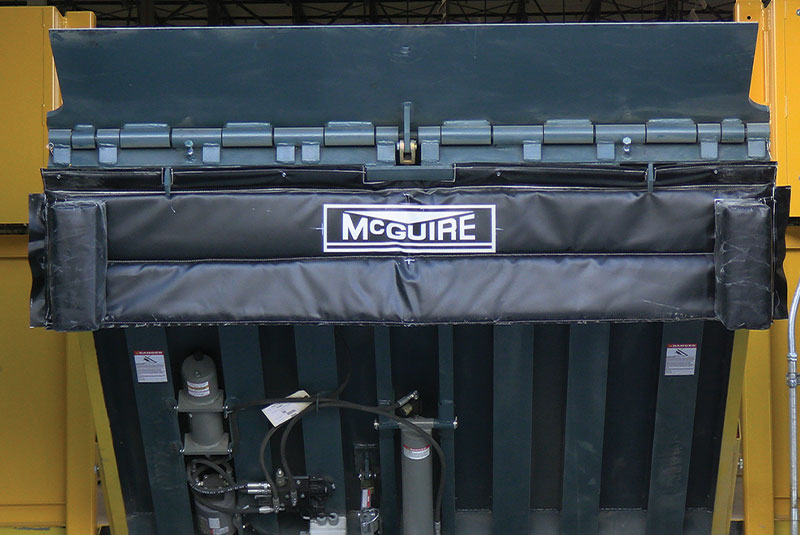

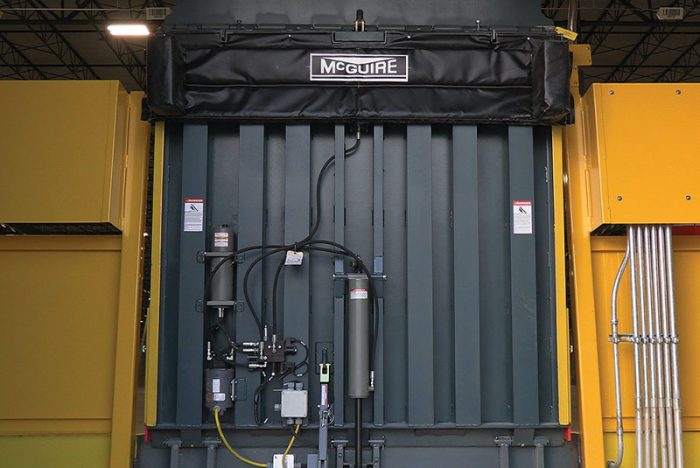

McGuire offers a vertically storing hydraulic dock leveler to meet any of your dock equipment needs while providing low lifetime ownership costs, best built-in safety, and years of trouble-free service.

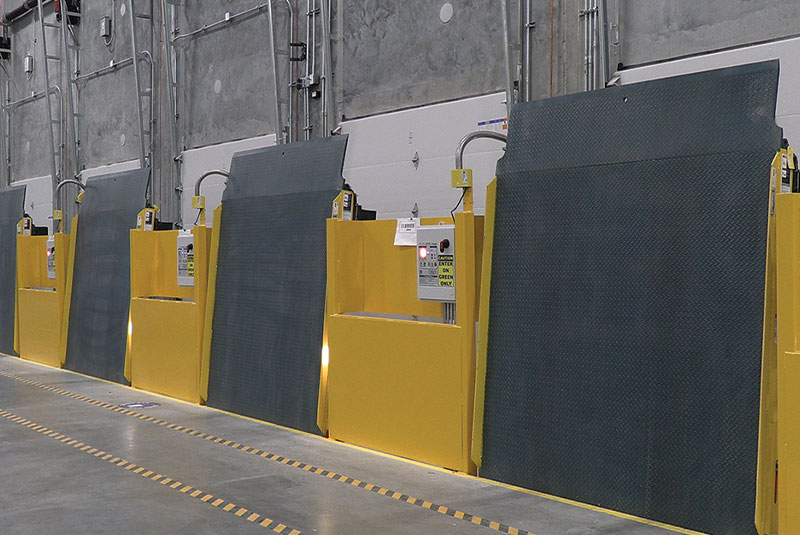

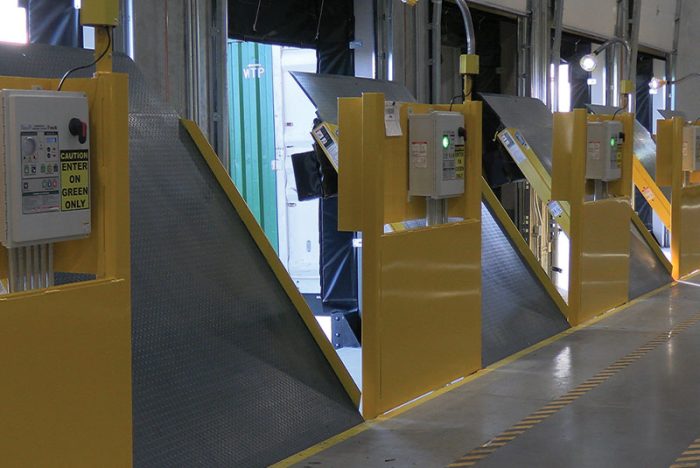

The VSH leveler offers unmatched environmental control for temperature-sensitive applications. The vertical storing design provides the tightest environmental seal when not in use. The VSH’s Push button convenience provides smooth, consistent operation combined with outstanding toughness and dependability.

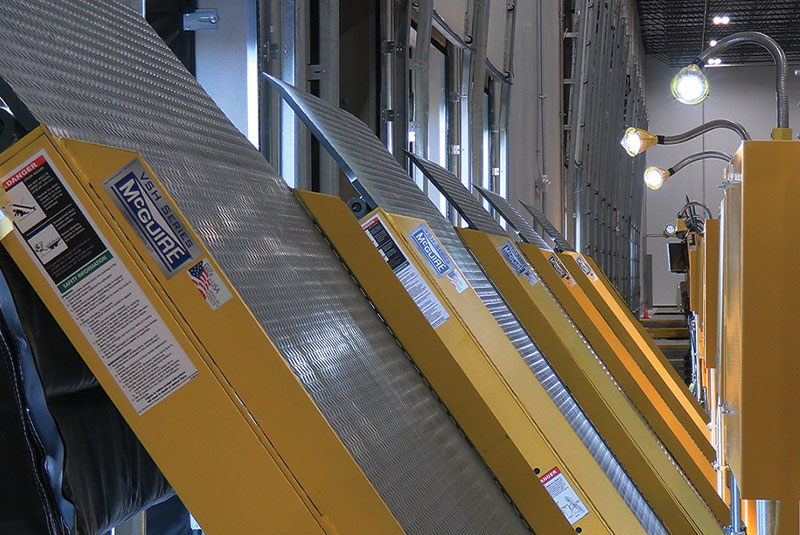

McGuire VSH levelers can be installed in either a single pre-formed pit or a longer shelf-style pit for multiple units. Various sizes and capacities allow for a large amount of flexibility. VSH levelers come in 6’, 6’6” & 7’ standard widths and 5’ and 6’ standard lengths with 8’ available. Standard capacities for the “VSH” Series are 40K, 45K, and 50K CIR (Comparative Industry Rating).
SPECIFICATIONS
| MODEL | NOMINAL SIZE |
|---|---|
| VSH-65 | 6' x 5' |
| VSH-66 | 6' x 6' |
| VSH-68 | 6' x 8' |
| VSH-655 | 6'6" x 5' |
| VSH-656 | 6'6" x 6' |
| VSH-658 | 6'6" x 8' |
| VSH-75 | 7' x 5' |
| VSH-76 | 7' x 6' |
| VSH-78 | 7' x 8' |
| DYNAMIC CAPACITY / COMPARATIVE INDUSTRY RATING |
|---|
| 20,000 / 40,000 |
| 22,500 / 45,000 |
| 25,000 / 50,000 |
PRODUCT DOCUMENTS
Product Literature
Related products
All Aluminum Welded Truck Dock Board (ATD)
- All Aluminum Welded Truck Dock Board (ATD) The All Aluminum Welded Truck Dock Board (ATD) is a lightweight yet durable solution for low to medium-volume loading applications. Designed for use with forklifts and pallet jacks, it features all-welded aluminum construction for strength and reliability. This innovative alternative to heavy-duty steel dock boards ensures efficient and safe loading operations.
Aluminum Walk Ramps – Apron Style
Aluminum Walk Ramps – Apron Style
Lightweight, Portable, and Built for Safety
Bluff’s Aluminum Walk Ramps—apron Style—offer a strong yet lightweight solution for efficiently loading and unloading cargo. Designed for portability and convenience, these ramps are perfect for warehouses, delivery services, and industrial settings.

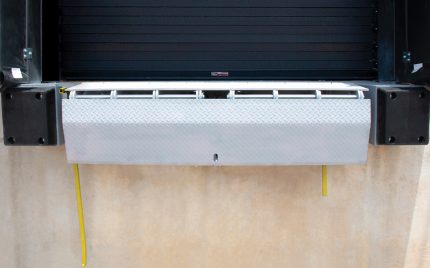

Edge of Dock Leveler E66R & E72R
